Product Description
We have sold out of all our pumps but new ones will arrive in mid-March. You can pre-order pumps now.
RawVac™ vacuum pumps are selected for CNC vacuum workholding — when you need stable negative pressure in a system where some airflow and leakage may be present (for example with MDF spoilboards and through-cutting). The pumps are oil-free, making the installation cleaner and simpler, with no oil mist and no oil changes.
These are not the same type of pump commonly used for heat pump installation, where oil-lubricated service pumps are typically used to evacuate refrigeration systems. RawVac pumps are built for a different application and operate under different conditions.
RawVac™ Vacuum Pumps
RawVac 8.5 – Compact and Efficient
Nominal airflow (free air): 8.5 m³/h (≈ 142 L/min)
Ideal for small workpieces and well-sealed fixtures where compact size and low noise matter.
RawVac 29 – For Higher Demands
Nominal airflow (free air): 15 m³/h (≈ 250 L/min)
A strong all-round choice for standard tables, MDF spoilboards, and through-cutting with moderate leakage.
RawVac 29 – For Higher Demands
Nominal airflow (free air): 29 m³/h (≈ 480 L/min)
Best for larger surfaces, multiple zones/tables, and higher leakage situations where extra airflow improves stability.
What do the numbers mean?
Our pump names are based on nominal airflow (free air) measured in m³/h, which is a common European way of specifying pump capacity.
Higher airflow generally provides more margin in “leaky” setups and porous materials.
Choose Your Model

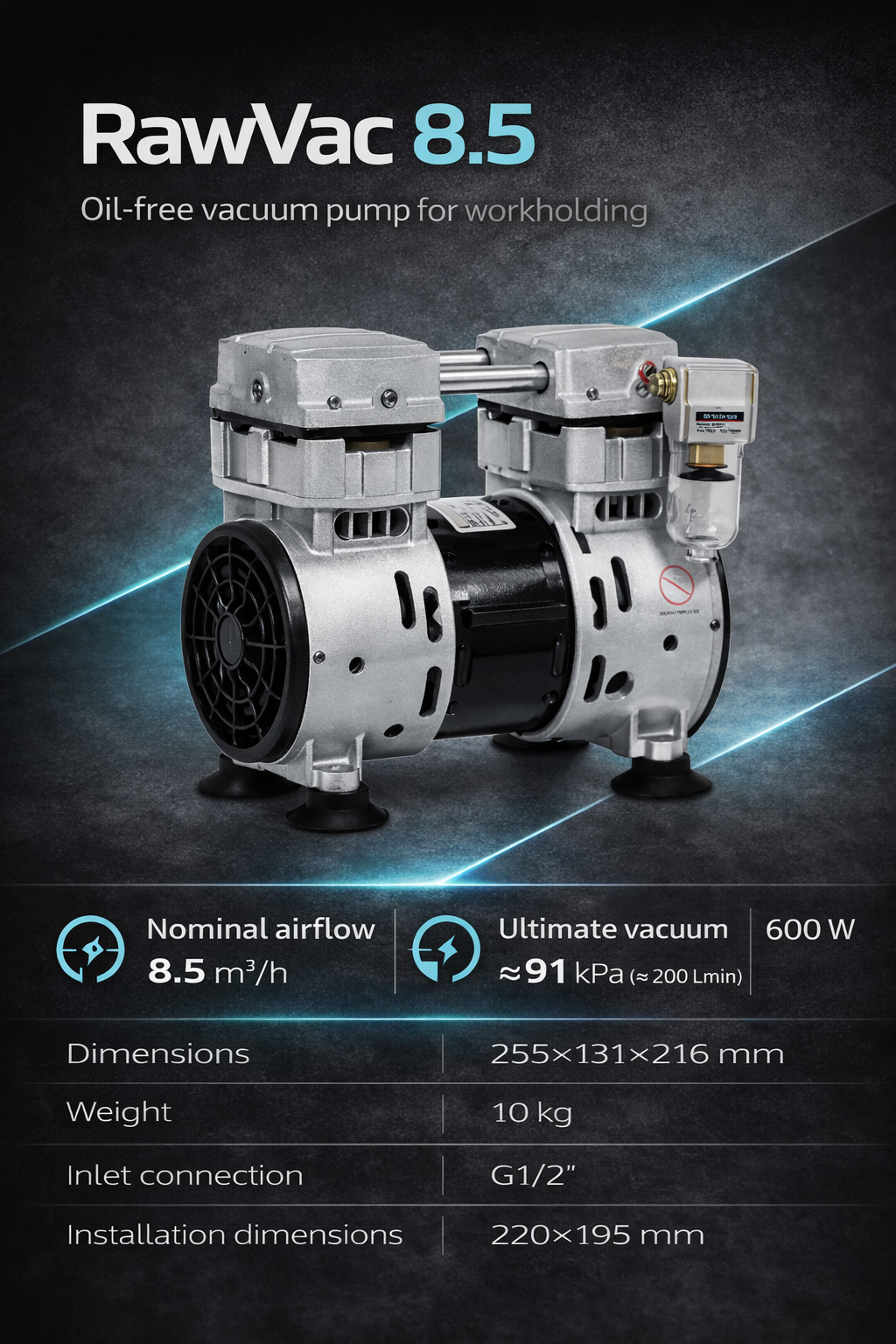

🔹 RawVac 8.5 – Compact and Efficient
For smaller surfaces, well-sealed fixtures, or when you want a compact pump that still delivers stable workholding.
Specifications
- Voltage: 220 V
- Power: 600 W
- Airflow: 8.5 m³/h (≈ 160 L/min)
- Ultimate vacuum: ≈ −91 kPa
- Dimensions (L×W×H): 255×131×216 mm
- Weight: 10 kg
- Connection: G1/2 – 10mm push connect

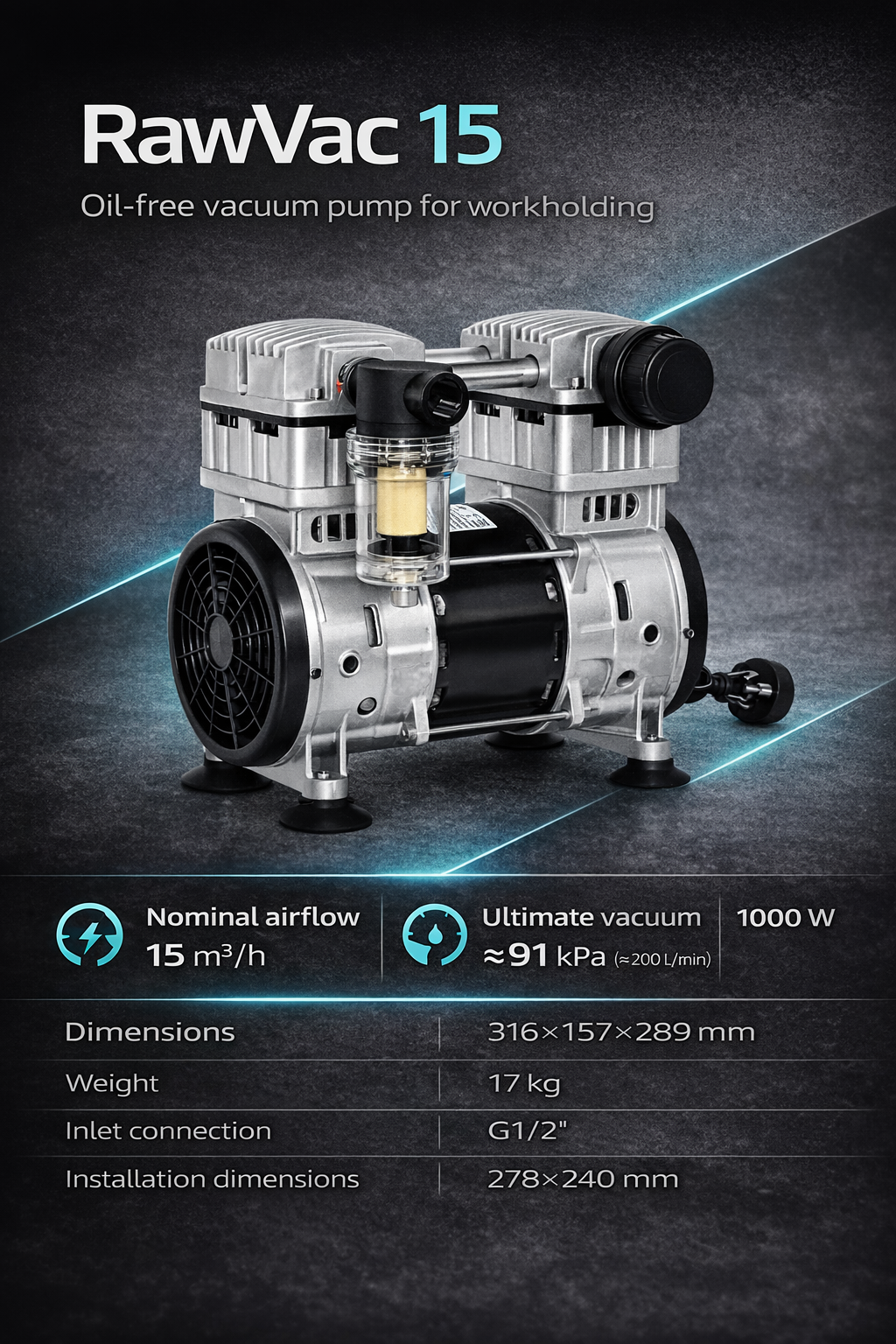

🔹 RawVac 15 – Strong All-Round Pump
A balanced choice for most CNC jobs, including MDF spoilboards and through-cutting with moderate leakage.
Specifications
- Voltage: 220 V
- Power: 1000 W
- Airflow: 15 m³/h (≈ 200 L/min)
- Ultimate vacuum: ≈ −91 kPa
- Dimensions (L×W×H): 316×157×289 mm
- Weight: 17 kg
- Connection: G1/2 – 12mm push connect – 10mm push connect for flexible sizing meaning you can use 12 or 10mm hose.

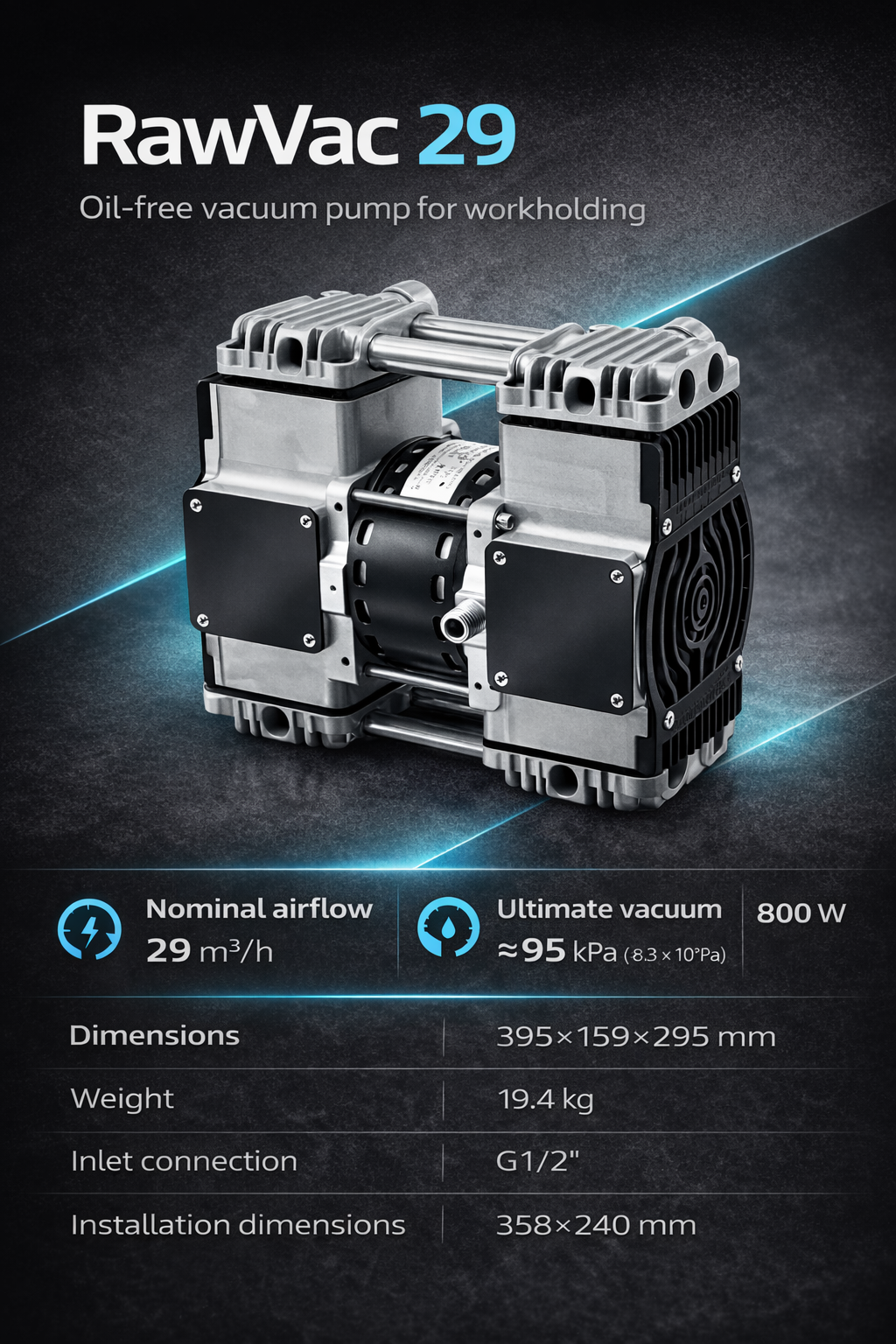

🔹 RawVac 29 – For Larger Surfaces and Higher Demands
When you want higher airflow and improved stability on larger areas, higher leakage, serial connection of multiple tables or more demanding operation.
Specifications
- Voltage: 220 V
- Power: 800 W
- Airflow: 29 m³/h (≈ 480 L/min)
- Ultimate vacuum: ≈ −83 kPa
- Dimensions (L×W×H): 395×159×295 mm
- Weight: 19.4 kg
- Connection: G1/2 – 12mm push connect – 10mm push connect for flexible sizing meaning you can use 12 or 10mm hose.
Quick Buying Guide
- Tight fixtures / vacuum plates: RawVac 8.5–15
- Spoilboard + through-cutting: RawVac 15–29
- Large surfaces / higher leakage / multiple tables / more margin: RawVac 29
Important Note About Vacuum Workholding
Vacuum holding performance depends not only on the pump, but also on sealing, material porosity, spoilboard condition, and overall leakage in the system. Higher airflow typically improves stability in “leaky” setups, while tight fixtures often work well with smaller pumps.
Compatible With
- RawVac vacuum tables
- MDF spoilboards
- Fixtures and vacuum plates
- CNC machining setups where you want to avoid clamps and toolpath collisions
