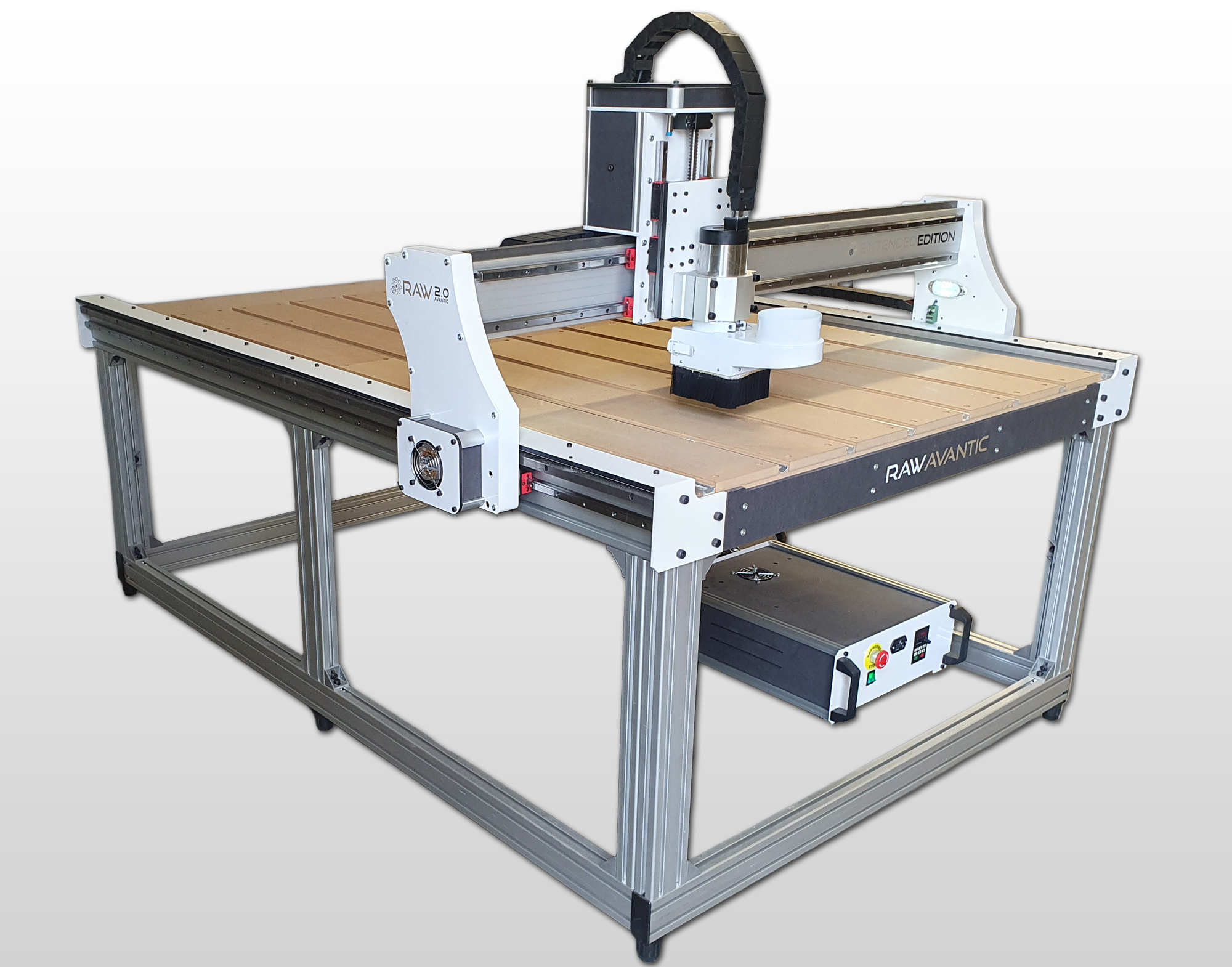

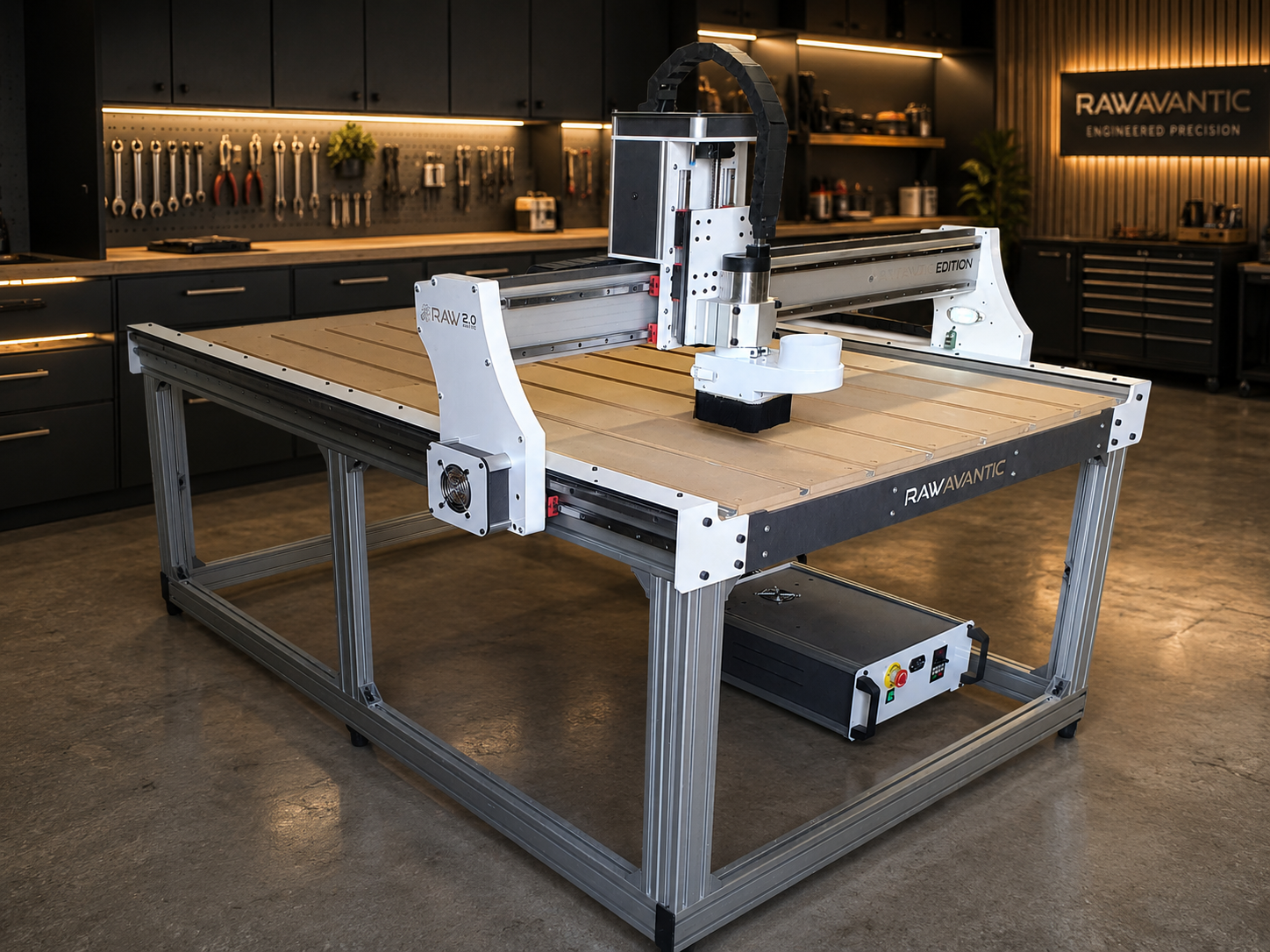

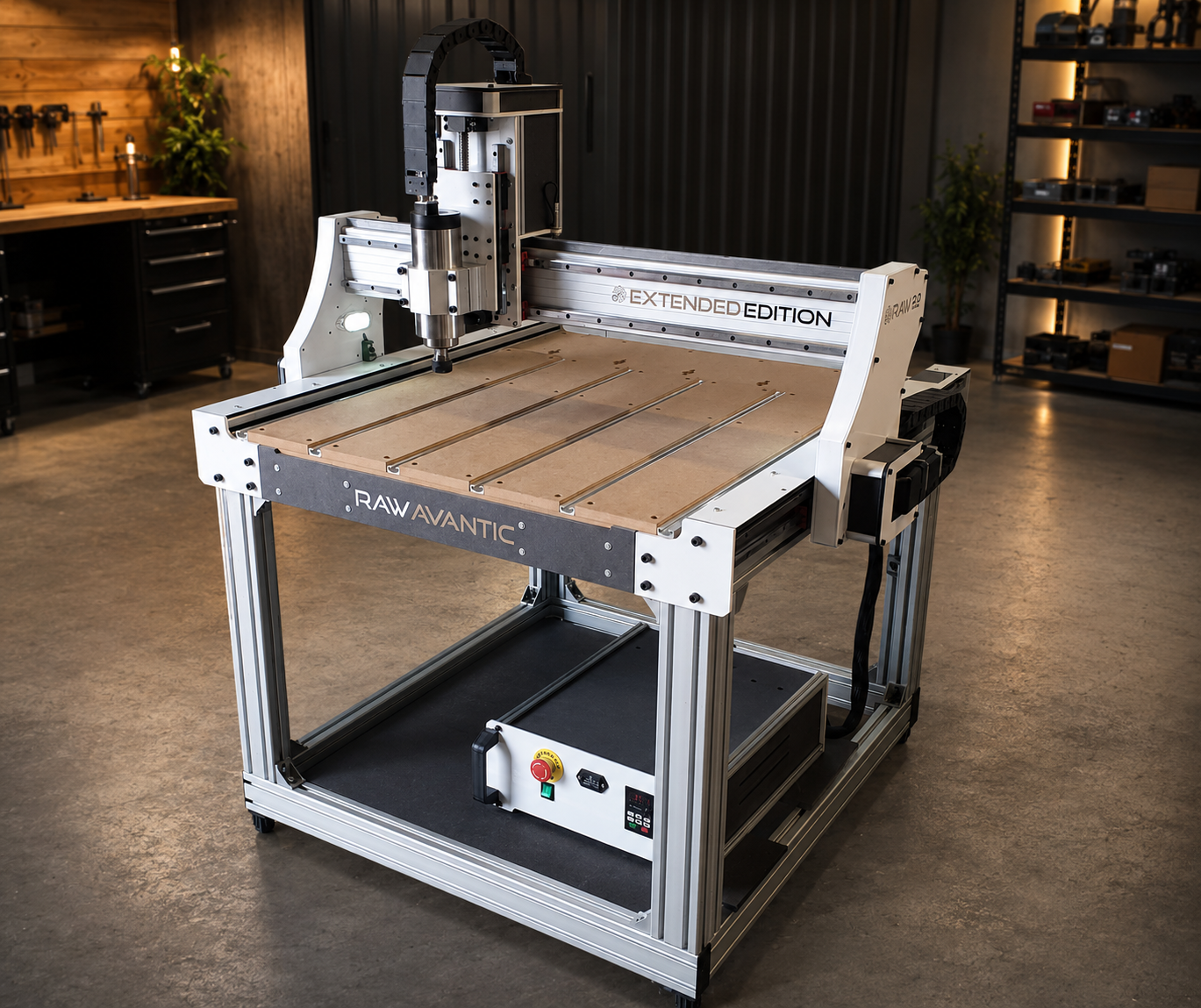

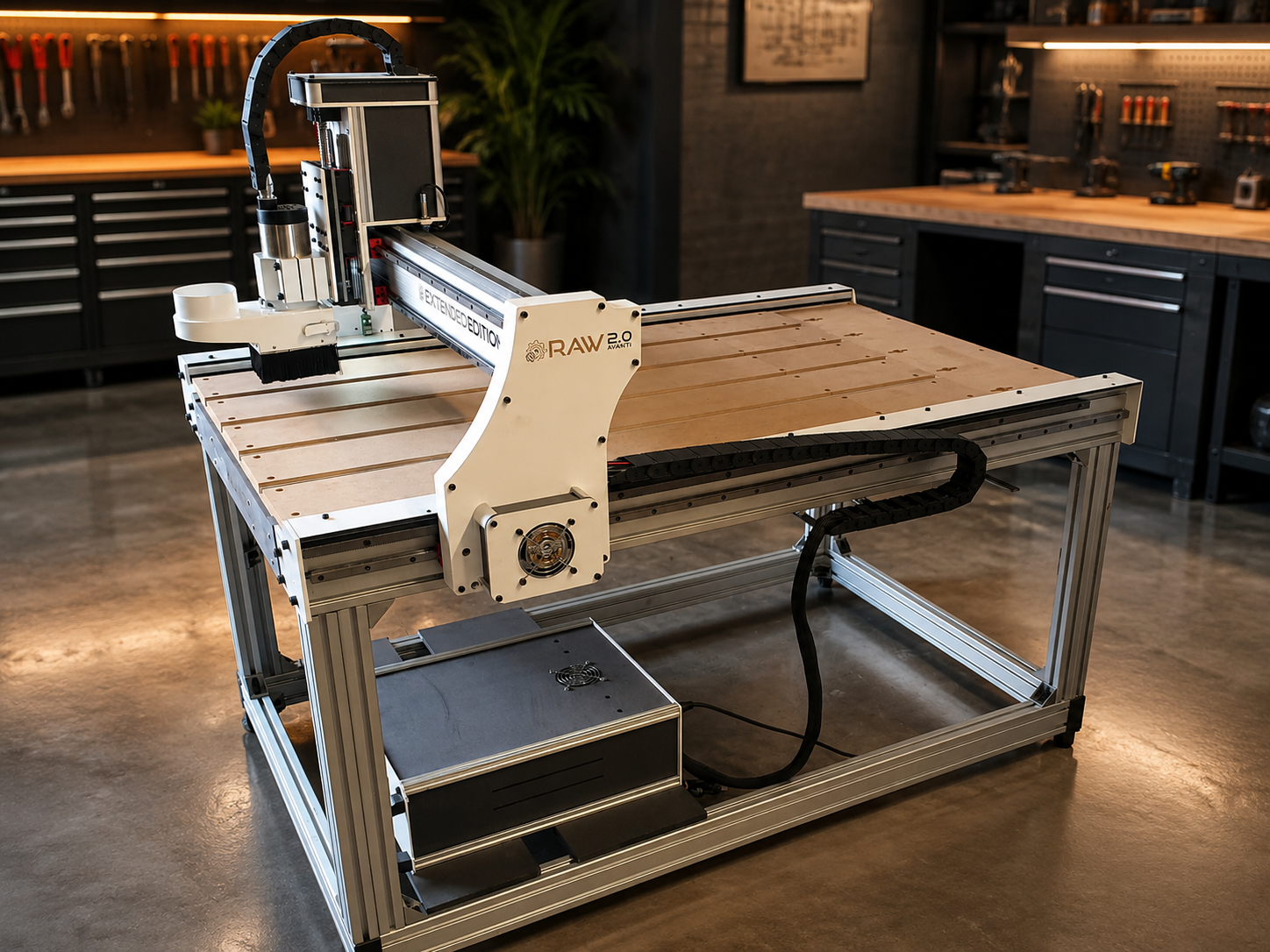

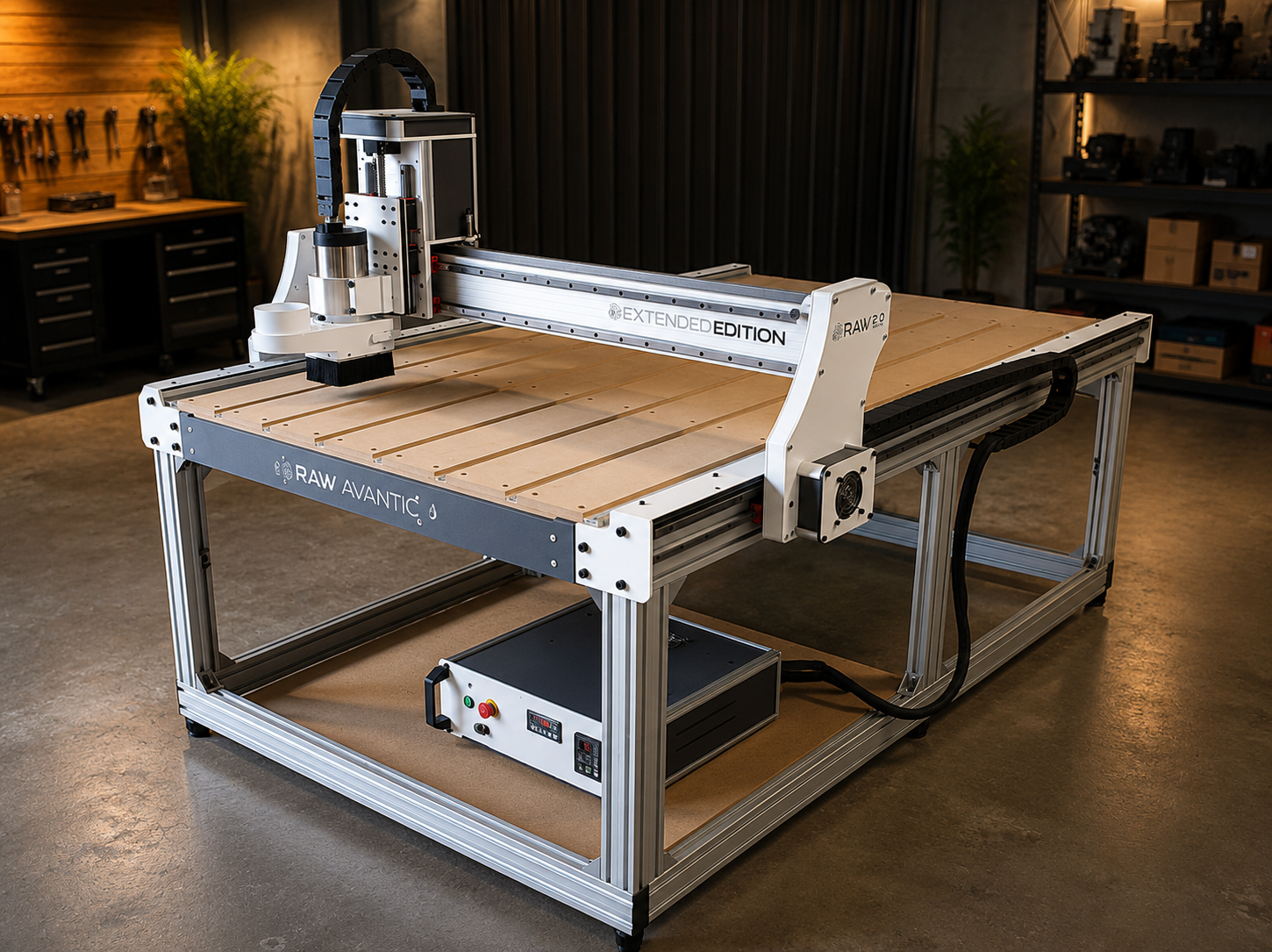

Raw Avantic Extended Desktop CNC machine

From: 4872

From: 4872
SKU: N/A Category:

Product Description

We are working on new drawings and delivery of the machine will take place at the beginning of July

Made by workers for workers

Raw Avantic EXTENDED Desktop is a work beast that is built to be used. Raw Avantic does real work in tough, dusty environments and in a perfect balance of precision, speed and operator friendliness. This machine comes fully assembled and you do not need to assemble it as with others on the market.

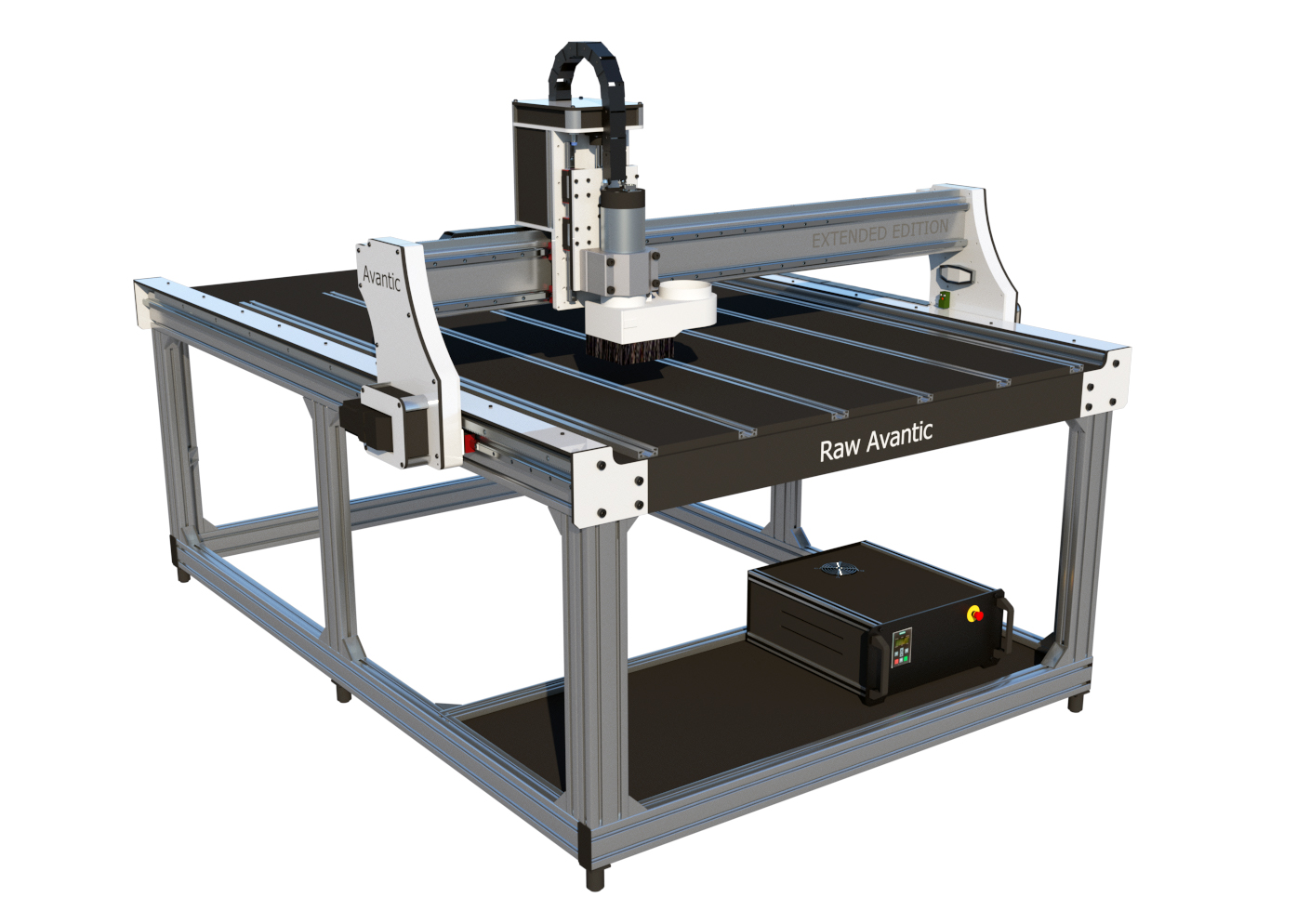

Raw Avantic Extended Desktop

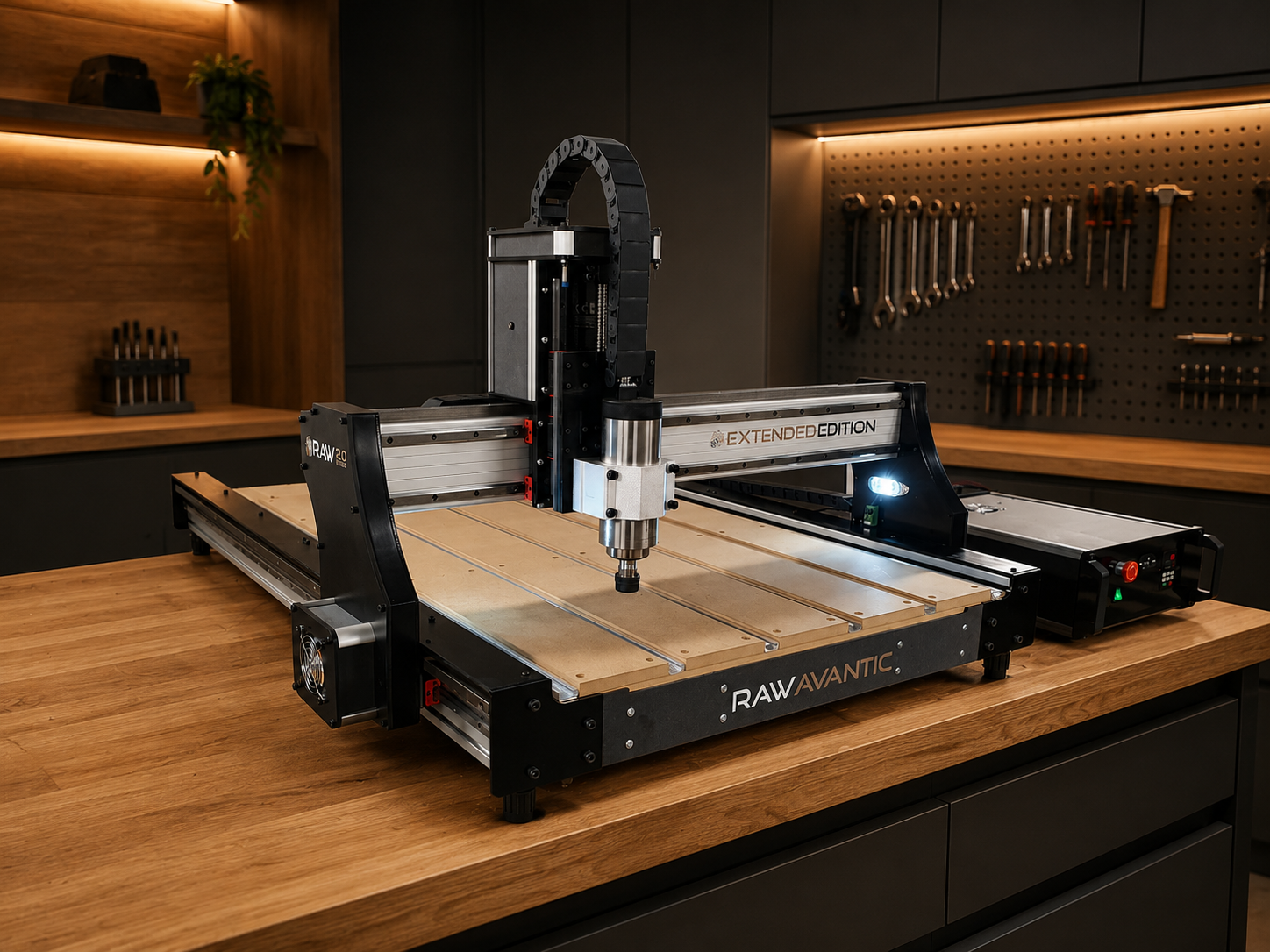

Extended Desktop is a more powerful version of Raw Avantic. The desktop model needs a table to stand on and you need to buy or make a stable table for the machine. The desktop machines are cheaper and smaller so you can more easily take it in through doors etc. The plates are now made of steel instead of aluminum. The aluminum profiles are specially designed by us and manufactured just for this machine. The Z-axis is redesigned so that all electronics can be hidden behind protection from dust and shock. The table itself is supported by strong steel tubes.

The motors have also been built in and completely protected. The electronics box has been given a stronger design. The side construction is stronger and more stable. You can also opt for smart electronics with Hybrid servo motors that never lose position and find their way back in the event of any shocks or user errors. Hybrid servomotors communicate with the electronics and stop in the event of a cable break etc. to protect the material you are cutting.

This is the closest we can get to a steel-constructed industrial machine. With this machine you can mass produce parts in a professional environment and with incredible precision. To run the machine, a normal 220 socket with 10 Ampere is sufficient.

Describing the machine requires a lot of text so here is a summary, more advanced text below

  • The machine is complete, and you can start cutting with it immediately.
  • The machine can be ordered in three different sizes, 1500x2000mm with cutting surface: (W) 1100mm x (L) 1750mm, 1180x1350mm with cutting surface: (W) 720 x (L) 1060 mm, 1180x1000mm with cutting surface: (W) 720 x (L) 720mm
  • It’s not difficult to run the machine, once you’ve done it, you will know how it works. All the text below makes it look complicated but it is simple. see our instructional video below.
  • The machine is controlled with any Windows computer via USB port and a program called Mach3. If you don’t already have it, you must select it in the drop menu above. The files to be cut are set up in a so-called CAM program. Read more about the software below.
  • You can draw simpler models in the CAM software we include with the machine, if you need more complex parts you can use whichever CAD program (drawing program) you want, the machine is compatible with most drawing programs on the market.

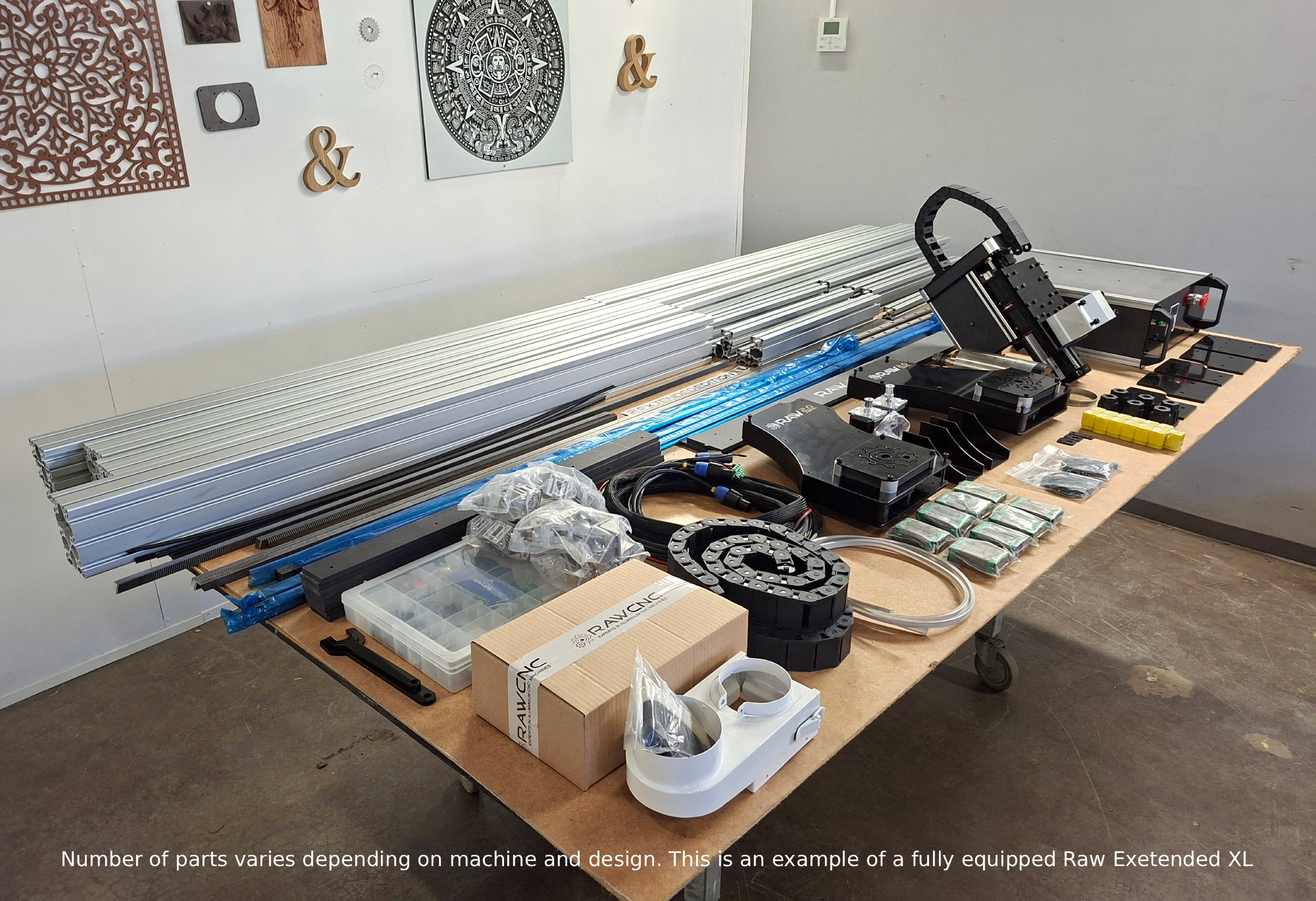

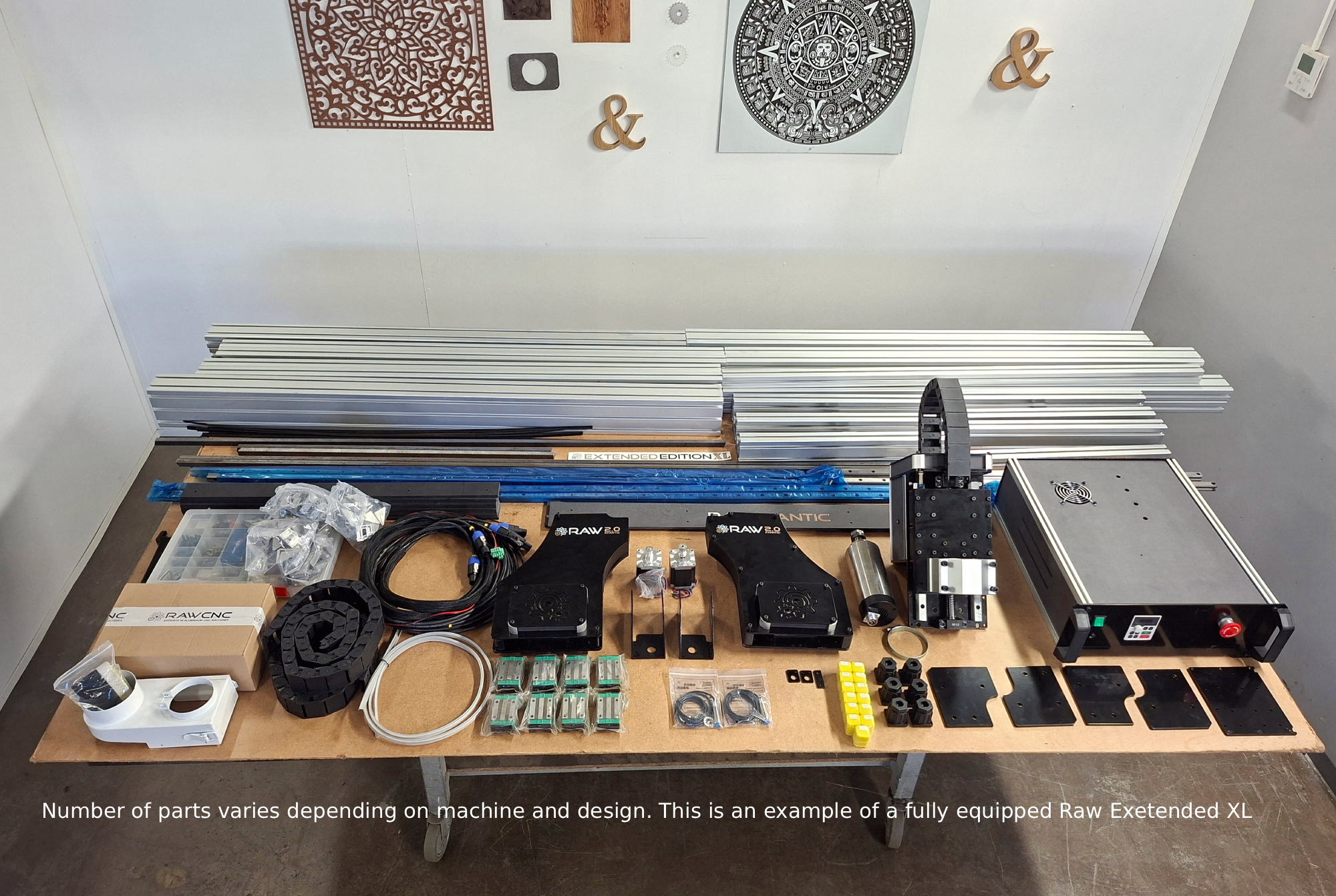

How is the machine delivered?

The machine comes in larger parts that the user must assemble himself. What you don’t need to build yourself is the electronics box, Z-axis construction, Motor mount, Soldering of plugs and connectors, rail control and rack assembly, spindle with interlocking of automatic control of the spindle so that it can be controlled via the software. All plates are powder coated and threaded. All of this comes complete but must be assembled by the user. We also thread all profiles so that construction will go as quickly as possible. See pictures above for how the parts are delivered. We will update the pictures but you can look at the standard Avantic machine to see how we deliver the machine. Extended is delivered in the same way but with more and larger parts. The cables come pre-cut with the plugs mounted, but you need to strip and connect cables to terminals according to our instructions, only low voltage and 24V no high current!

Previously, we built whole machines, but now the machine is built in parts for easier shipping and handling.

You do not need to have any knowledge at all regarding CNC machines, but it is recommended that you have a certain habit of building things together. If you get stuck, we are only a call away and support is of course included with your purchase.

We have sold CNC machines since 2010 and are good at producing good video instructions and illustrations. We guarantee help until the machine is completely built. How long it takes is hard to say, but for someone who is used to it, it takes about 6-8 hours to assemble the machine.

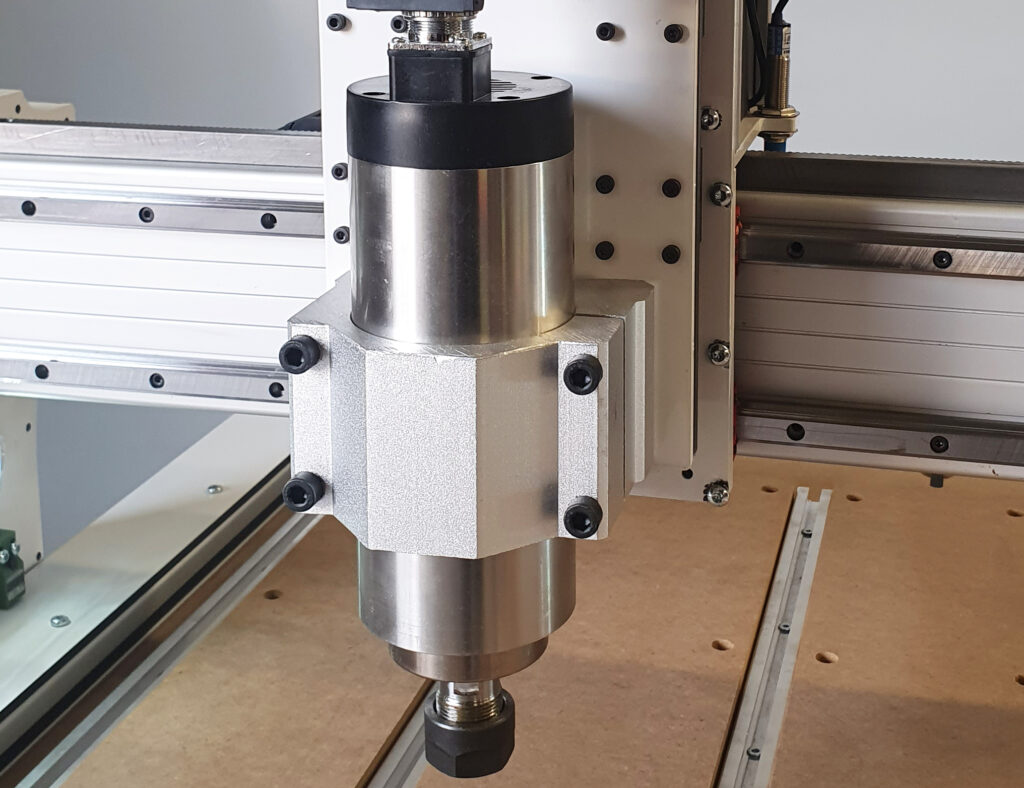

2.2kw spindle



2.2kw spindle

Avantic is delivered with a powerful, air or water-cooled 2.2 kw spindle with integrated inverter that is connected to other electronics. These spindle’s are strong, quiet and reliable. We use these ourselves and have done so for many years. With this spindle you can use inserts from 1-13mm (ER 20). We include a pair of end mills and so you get started.

Protection and dust hood
All our machines are delivered with a protective cover that effectively absorbs dust and any splinters.

Calebration


Calebration

Raw Avantic Extended has safety, homing and calibration switches for safety and precision. The switches are so-called Proximity switches that have no mechanical parts. Proximity switches are extremely accurate so that the machine can return to its “home” position with the best possible precision. The safety switches ensure that the machine cannot go too far, but stops the system and spindle as soon as the machine goes too far in any direction.

Precision



Precision

Precision is a balance between user and machine. It’s about how good your drawings are, spindle, rpm and how fast you cut. At a normal speed of approx. 2-4000m/min, the machine has the same accuracy as expensive industrial machines. Repeatability is: +/- 0.01 mm – 0.005 mm .
The machine is built to mainly cut wood, plastic and similar materials. You can cut aluminum but it requires experience regardless of the machine you use.

What can I cut with a Raw Avantic Extended?

Soft wood, hard wood, Mdf, plastic, aluminum, steel, Sign production, 3D carving and engraving etc. Note that aluminum and steel is difficult to learn how to cut and there are better machines for it such as laser or water jet. If you only want to cut aluminum or steel, you should look at more expensive industrial machines. We have cut thousands of meters of Aluminum ourselves with the machines, but it is difficult to learn. The machine is mostly for hardwood, wood, and softer materials such as plastic.
20mm linear guide rail



20mm linear guide rail

Avantic is delivered with a full 20mm wide guide rails and blocks of Hiwin type. Most machines in this price range use 15mm, but we think that 20mm gives a more stable machine. Guide rails have an extreme precision that ensures that the axles do not have any “play” Guide rails are preferable to other solutions.

On each block (12 pcs) there is a grease nipple. You can choose to lubricate the machine through them or use spray lubrication that you spray on the rails themselves.

Consumption table (Waste board)



Consumption table (Waste board)

Please note that we cannot send MDF boards as the shipping would be too expensive. However, we ship with rails, mounting accessories and clamps to a value of up to EUR 400 depending on the machine.
You can easily cut out your own table after the machine is built. We provide you with instructions for this.
The consumption table can be made of moisture-resistant black MDF or regular MDF and consists of two tables, a base table and a consumption table.

Stepper motors

Stepper motors

The kit comes with standard Nema 23 motors, which gives the power the machine needs and a little more. You can also build the machine with Hybrid servo motors for Y, X and A motor, but we do not provide you with instructions for this as the entire electrical box must be rebuilt. Regardless of choice, the motors are strong enough that a full-grown person can stand on the x-axis while the machine cuts. The choice of the parts is decisive for whether you need 3-phase or a regular 220 outlet. We have scaled everything down so that 220 volts and 10 Amps are enough. The motors have a direct drive against the rack to reduce backlash

Repeatability: +/- 0.01 mm – 0.005 mm, Backlash: +/- 0.01

Is it difficult to work with a CNC machine?

No, it’s simple. Raw Avantic is one of the easiest machines to work with on the market. We have placed great emphasis on making the machines as easy to operate as possible. You do not need to have previous knowledge or education. The only difficult thing is to draw your parts, the rest is easy. Once you have cut your first piece, you will understand. Watch our videos on the website and YouTube to see how easy it is to work with a Raw Avantic machine

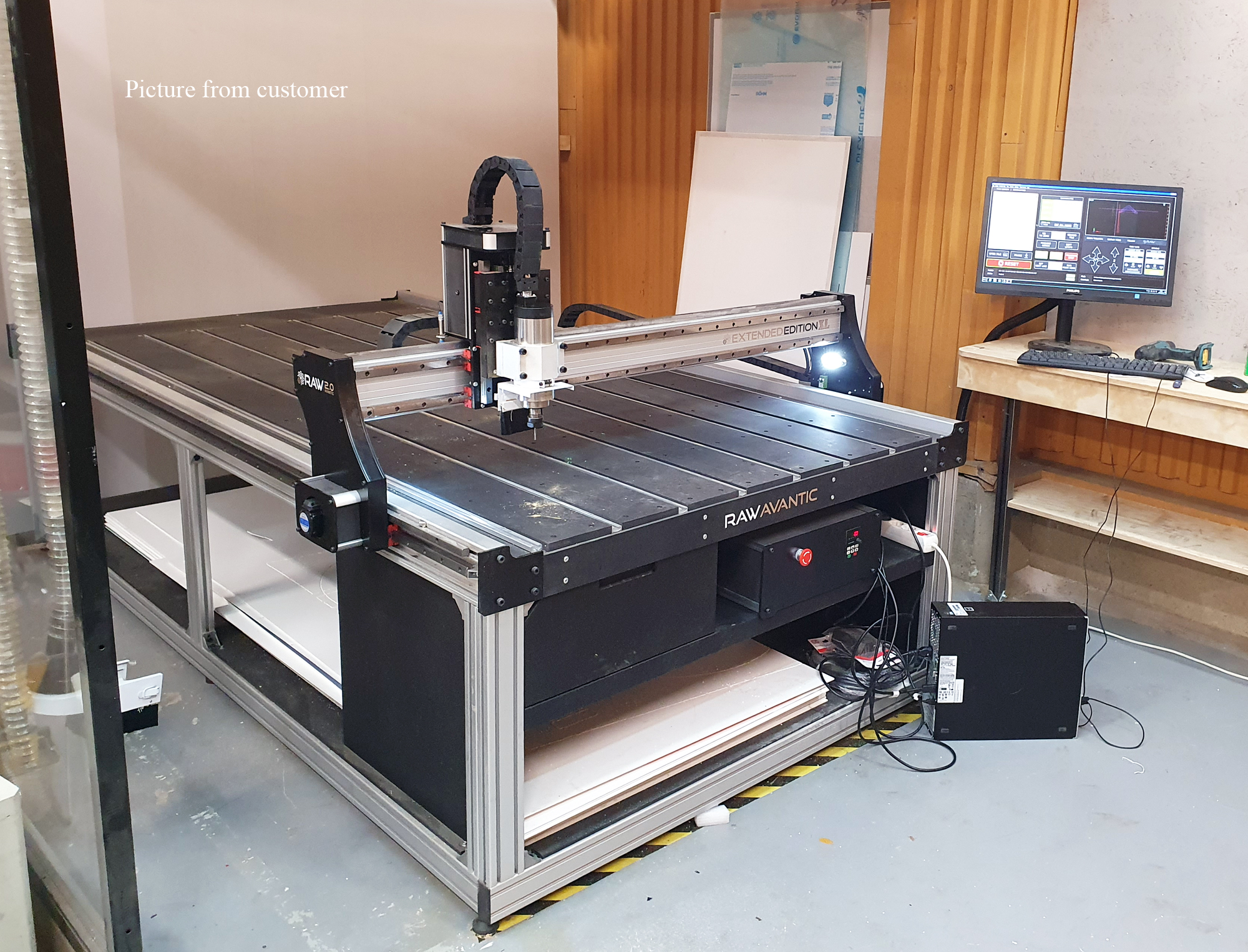

Series production

Our machines are widely used in series production and cut everything from Aquariums in Switzerland to guitars in Canada. If you are a company and need to manufacture something in series but need help with strategy to cut out your part, we can help you create jigs or adapt the machine in the best way. We have extensive experience in series production as we come from such a background. Contact us and we can discuss your needs. We can also help draw and set up your files.

Software

Cutting with a CNC machine requires 2-3 different software’s such as drawing, CAM (set up the files you drew) and Control software (to run the file). To control this machine we use Mach3. The CAM software we recommend is available in different versions and is called Vectric. the software also has an integrated drawing program for simpler models and you can get by with these two programs in the beginning. Read more about the CAM software below this text. If you outgrow the drawing part in the CAM, you can use more advanced drawing software’s such as Auto CAD or Fusion360 and others.

Mach3
Mach3 is the most used control software in the world, which means that there is more support and features for this software than any other. Mach3 looks outdated but we have updated it with our own UI to make it look more modern. The update is completely free and instructions can be found here: Update Mach3, see image to the right.

UCCNC, Linux or other control software
Avantic is compatible with most control software but we only have settings for Mach3. If you have decent knowledge of control programs, it is easy to set the machine to any option.

To set up the machine
After you have built your machine, it must be set up with control software to be able to run. We have a guide for this at the top of the page “Configure your machine here” If you run into obstacles or feel you don’t have time, we can do it for you. Send the computer to us while you build your machine. The computer must be version WINDOWS 7-10. The computer does not need to have high performance as it is only supposed to control the machine. We recommend that you have a separate computer to control the machine. Alternatively, you buy a computer from us with everything already installed,

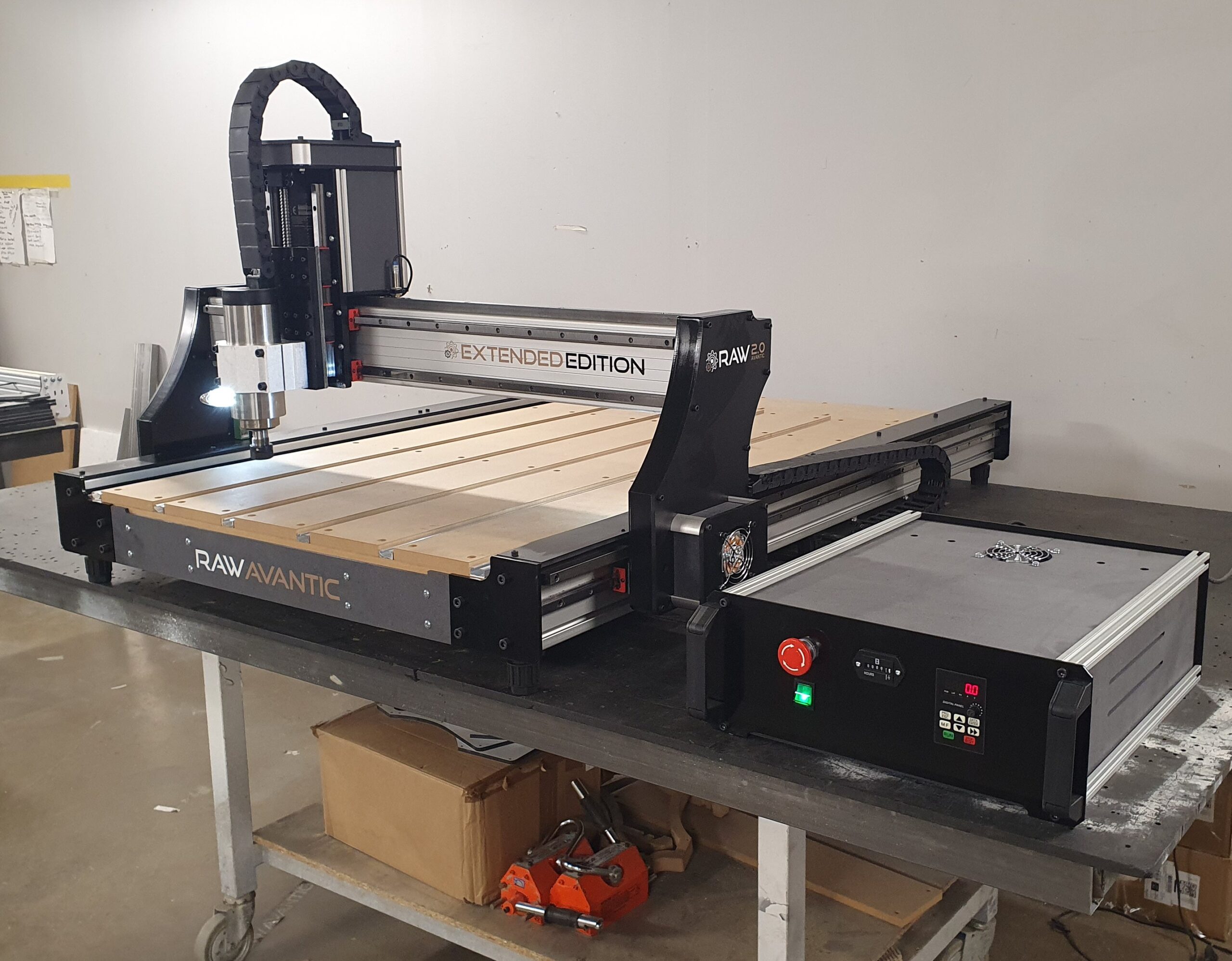

Desktop model

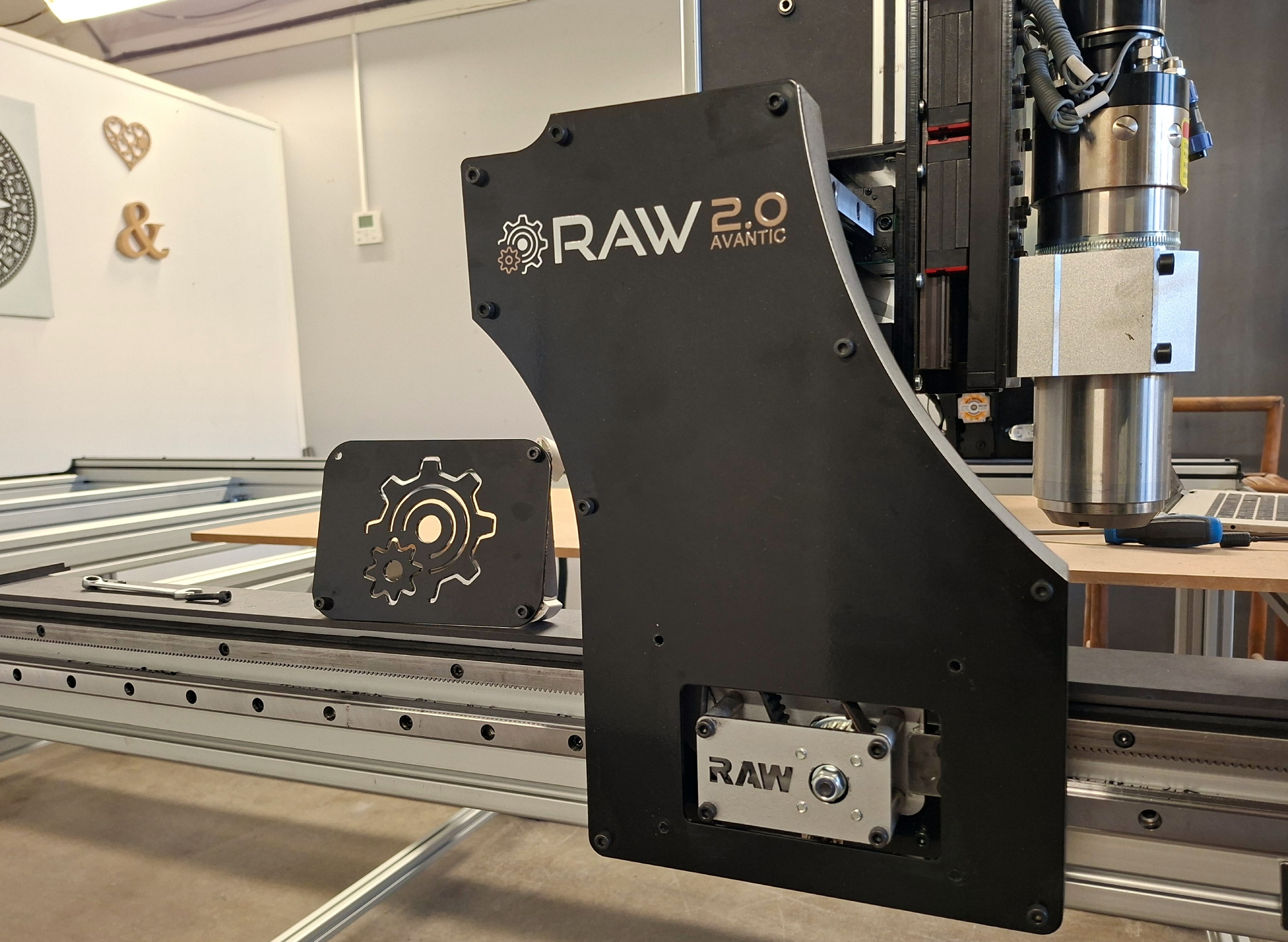

Steel plates

Previously, all plates were aluminum. With this model, we switch to sheet steel, which is much heavier and more stable. A heavier machine provides more stability and thus better cuts. The profiles are still in aluminum to keep the weight down. The machine table itself is held up by strong steel tubes to avoid “Flex” for tougher jobs.

The steel plates are laser cut and powder coated.

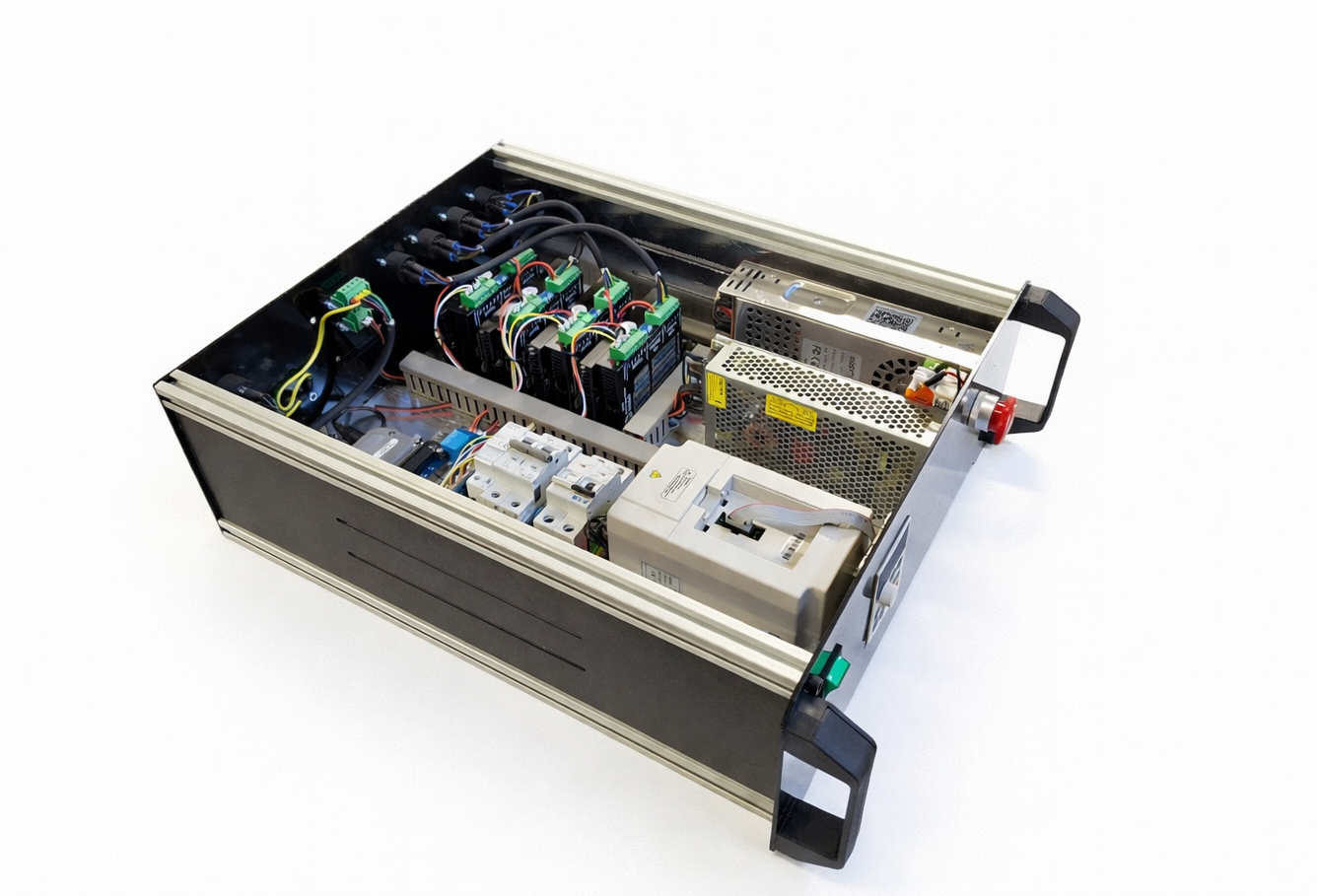

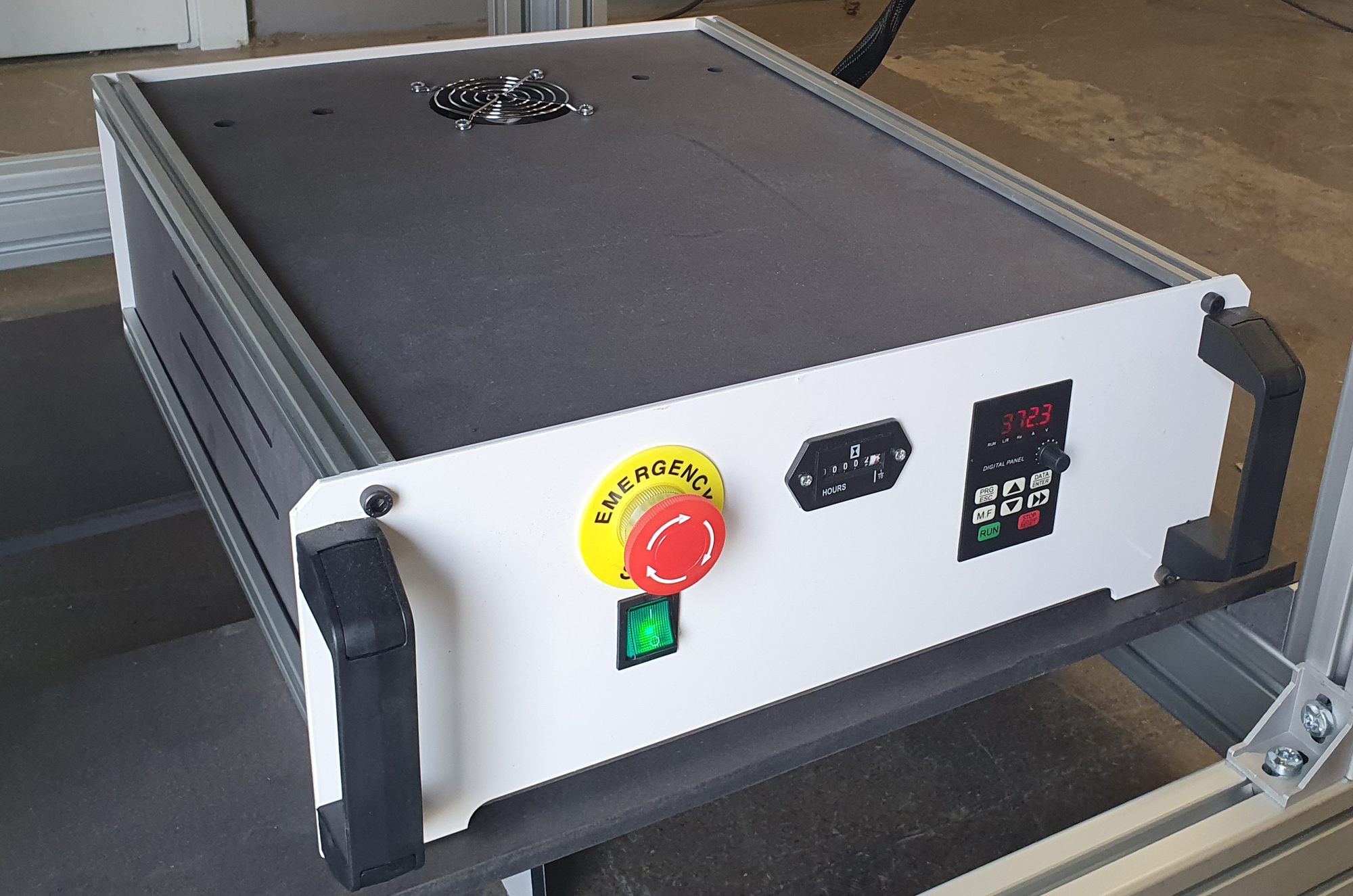

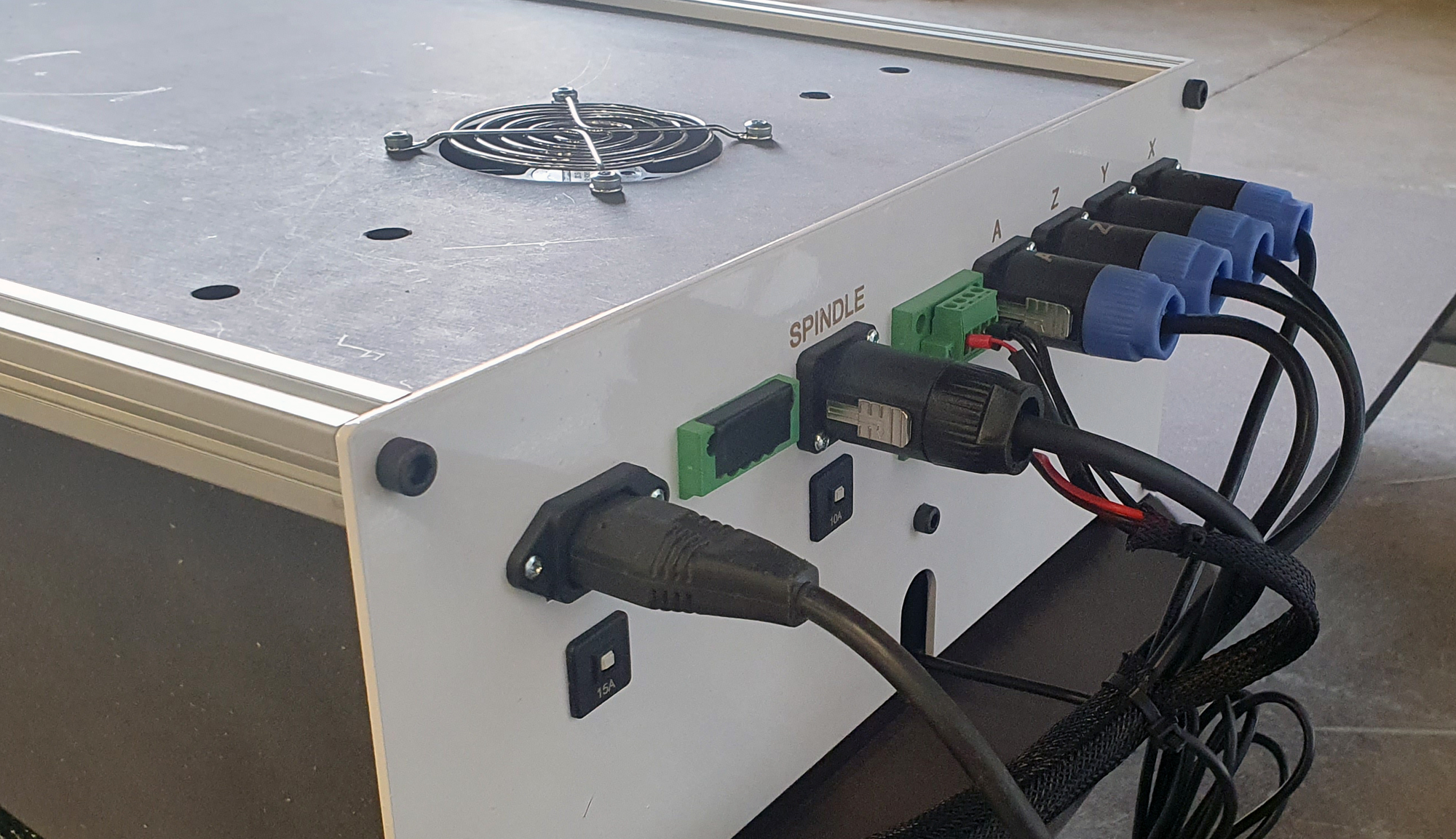

More powerful and smarter electric box



More powerful and smarter electric box

The electric box is completely rebuilt for the Extended models so that they look and are more professional. The electrical box for hybrid servo electronics is slightly larger than in the picture. All plugs can be pulled out for possible service if necessary. The machines are still adapted for standard sockets of 220 volts and 10 Ampere.

We have also reserved a place for a fifth axis which can be used for rotating axis etc.

Specially designed aluminum profiles


Specially designed aluminum profiles

We have designed and produced specially cast aluminum profiles for the Extended model. The profiles are stronger than regular aluminum profiles and fully adapted for our CNC machines

The entire machine is now manufactured according to our wishes. the result is a unique and extremely strong machine that can be compared to steel machines in strength and precision.

CAM software

Previously, a CAM software was included for the machine, but most users have their own software, so this is now an option that can be purchased from us or directly from the manufacturer. Below video shows 2Dcut Desktop from Vectric which is perfect to start with. You can later upgrade to Vcarve PRO if you outgrow it and you only pay the difference.

With Cut2D Desktop, you can cut out everything except 3D models. You can import Vector files that you find or buy online, engrave and cut on both sides of the material, etc. You can also import your own files that you draw in any drawing software as long as you get the file in .DXF format. All of this may sound complicated but it’s easy after you do it a few times. See the instructional video below for Vcarve products. The parts you can cut out must be a maximum of 600x600mm, so if you need to cut larger parts, you must upgrade the software to Cut2D PRO or Vcarve PRO, you can read more about it if you visit the product on our website.

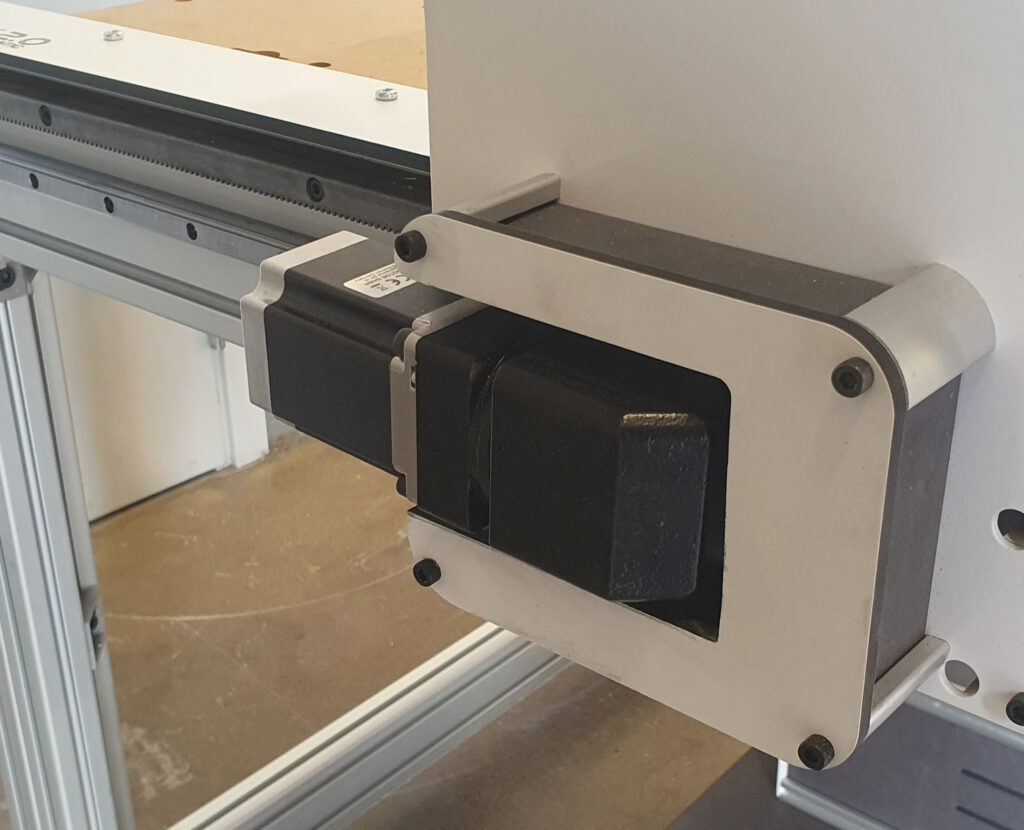

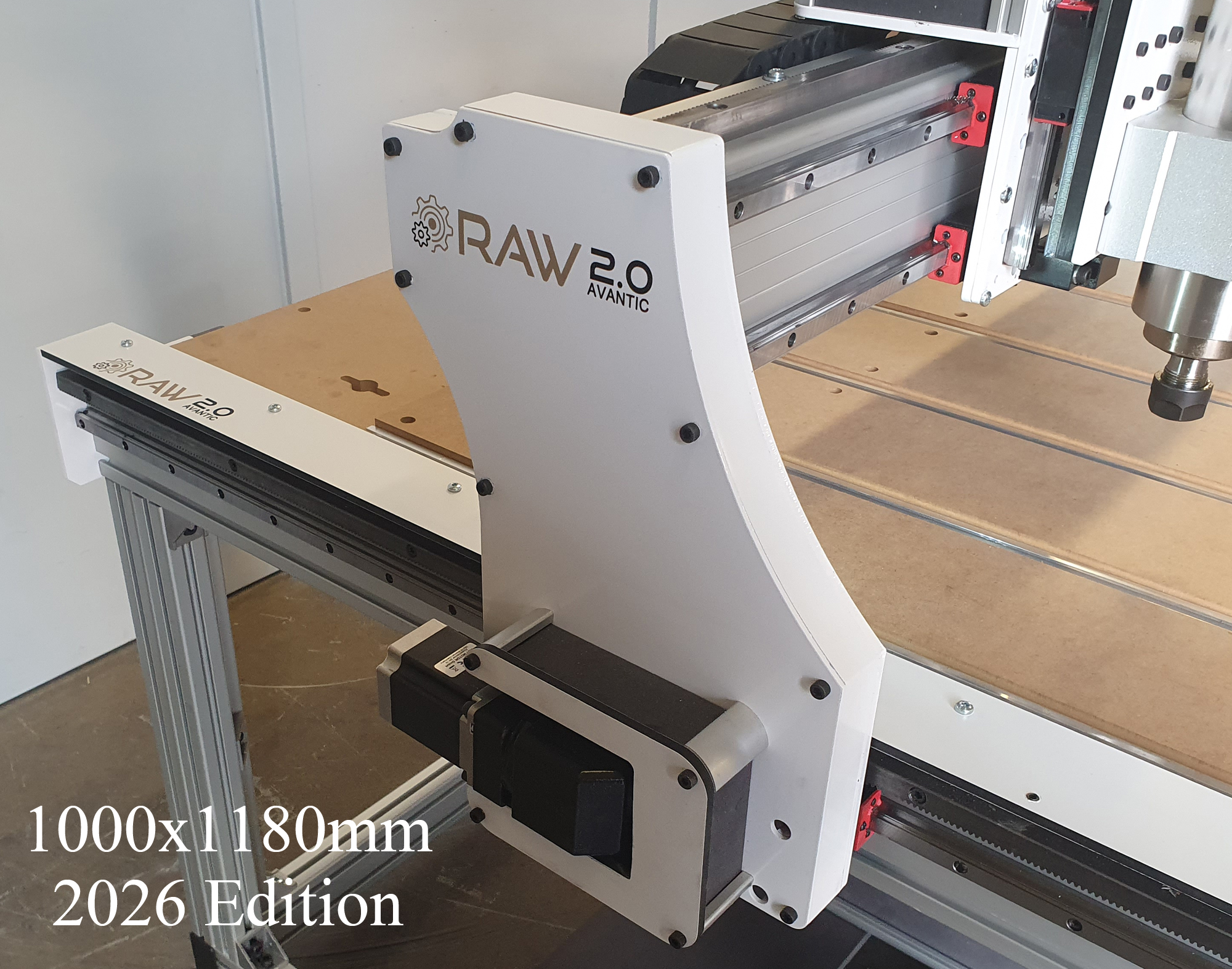

Built-in motors


Built-in motors

All motors on an Avantic Extended are built-in and protected from shocks and dust. The motor covers are easy to remove for service or repair.

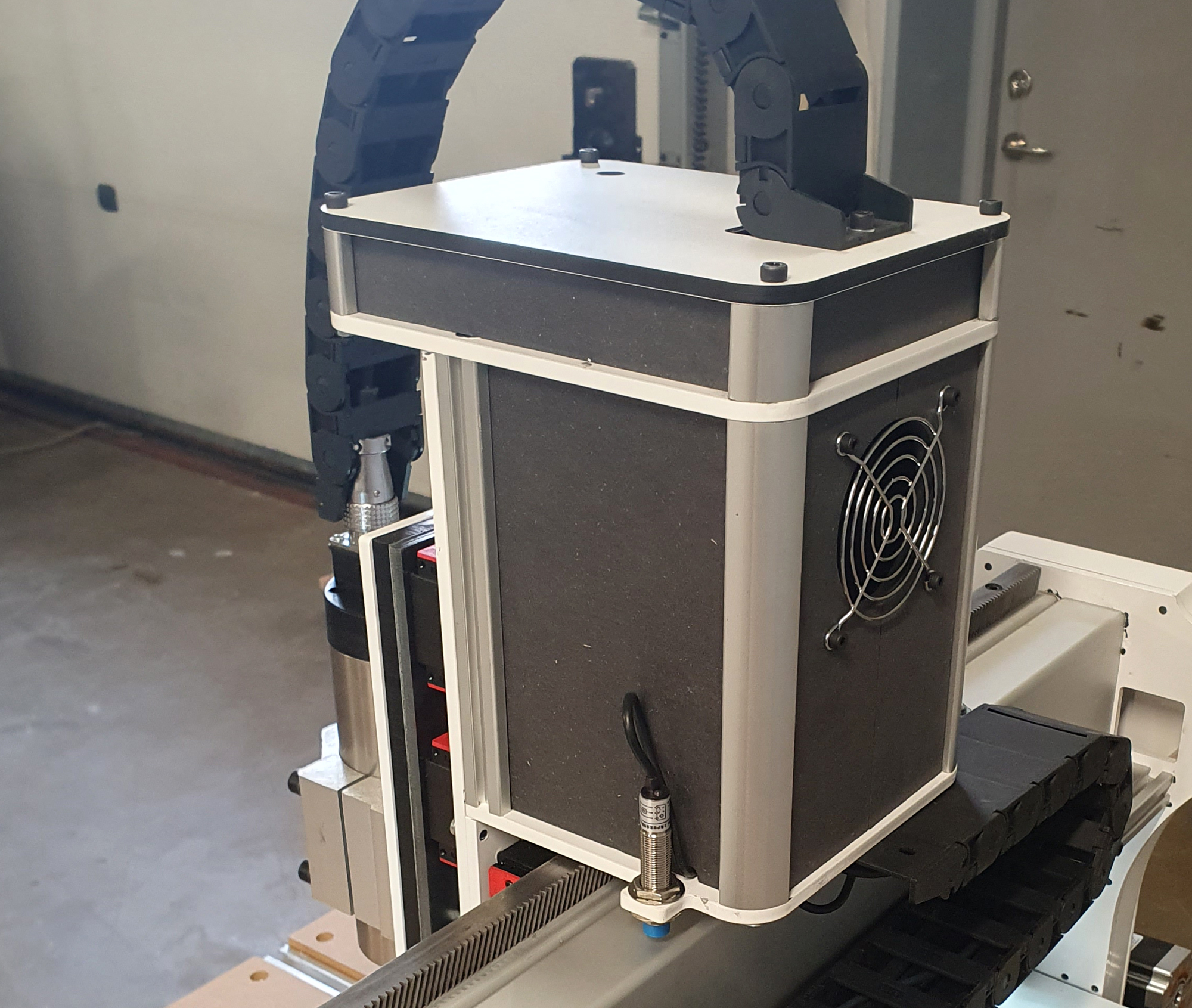

Rebuilt Z-axis


Rebuilt Z-axis

The Z axis of an Extended machine is built of steel and has protected electronics. The axle is removable for easier servicing if needed.

Stronger base

Stronger base

The base/consumption table is now about 4cm thicker than before and makes the whole machine much more stable. this is important if you are cutting in tougher materials such as Aluminum or steel.

Built by workers for workers

Raw Avantic is manufactured in Sweden and developed by us who previously worked as furniture carpenters. The machine came as an alternative to the expensive, heavy Asia machines that usually have a delivery time of 3-4 months and with questionable support. We always have personal support and guarantees.

CE certified

All our machines have their own CE markings and are tested and reviewed by independent review companies. CE marking comes with your kit and is linked to your order number. Without it, you cannot use the machine at the company or sell the machine on. CE certificate shows that the machine is built with the right components and assembled in the right way. Purchase of kit entitles you to build only 1 certified machine
Certificates, Standards and compliance

  • Machinery Directive 2006/42/EC
  • EMC Directive 2014/30/EU
  • RoHS Driective 2011/65EU
  • EN-ISO 12100:2010
  • EN-ISO 19085-1:2017
  • EN-ISO 19085-3:2017
  • EN 50581:2012
  • EN 50370-1:2005
  • EN 50370-2:2003
  • IEC 60204-12018

Table

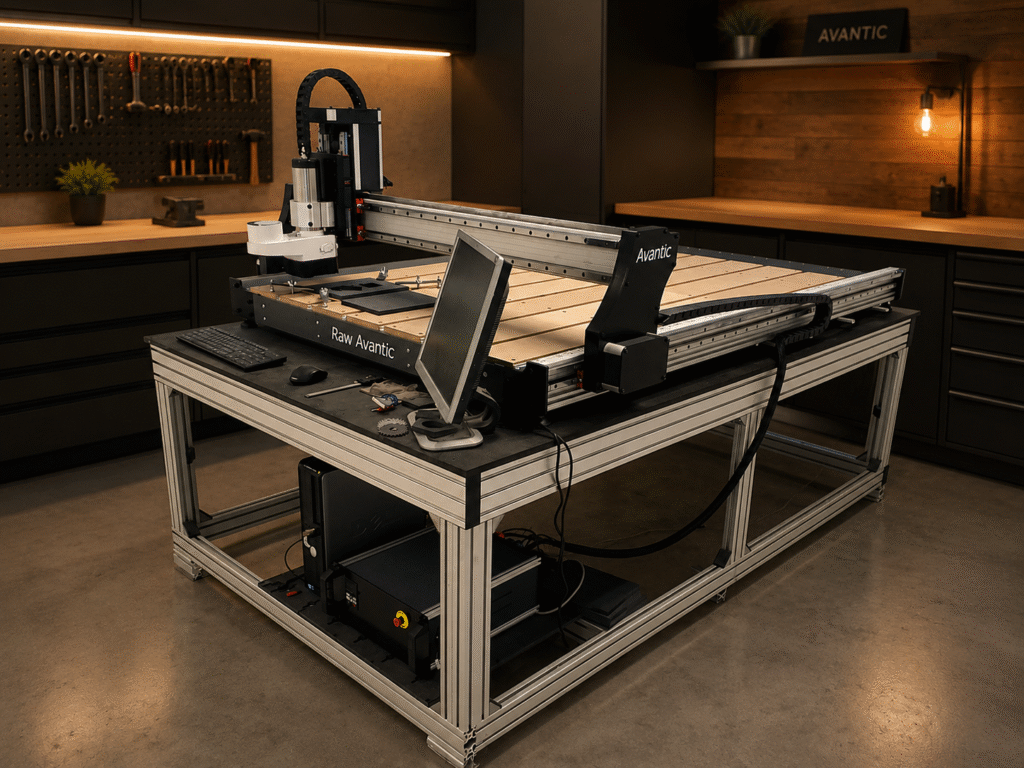

The machines are so-called “Desktop machines”, which means that you need to manufacture or buy a table for it. If you choose to build a table, you can build it as wide as the machine and about 30-40 cm longer, so that you can fit a screen and keyboard in front of the machine. The table can be made of wood, aluminum or steel. The only requirements are that it is 100% level. If you do not have time to build a table, you can buy one from us. The tables we manufacture are adapted to the machine and made of strong aluminum. Under the table is a shelf for electronics. The table comes in parts and must be assembled on site. The table is about 75cm high. PLEASE NOTE that we do not send with the boards for the table, only aluminum profiles as well as the hardware and glue. The table is not mounted and you have to do it yourself with our instructions.

The tables come in two sizes,
For Avantic 2000x1500mm, the table size is 2320x1420mm without top board. (the top board should protrude about 2cm around)
For Avantic 1000x1180mm and 1300x1180mm, the table size is 1460x1160mm without a top board. (the top pboard should protrude about 2cm around)

Shipping

Shipping a CNC machine is expensive, due to its size and weight. The prize on our site is the actual cost and sometimes less. You can use your own shipping company but let us know beforehand. If you have the opportunity, you can pick up the machine from us in Sweden.

You will also find manuals and video instructions on our website. You can call us at any time with questions and for help with setting up your files. We guarantee help and will not leave you with unanswered questions.

Tax
As a EU member you need to pay Swedish tax of 25% if you don’t own a valid company. If you own a valid company, you will need to enter your VAT number at checkout and the tax will not be added to the price. We will check with the registry to see that you have a valid company, if not we will have to charge you the tax even after delivery.

Why an Aluminum Machine?
Aluminum machines do not weigh as much as a steel machine. If you compare a larger Avantic that weighs about 150-200kg, a steel machine weighs up to 2 tons in the same dimensions.
A steel machine can only stand on concrete floors while an Avantic can stand wherever you want and can also be carried up or down stairs. A steel machine requires a truck that can unload 2 tons and wide doors, while an Avantic can be moved with a pallet lift and through doors. If the machine is in the way, it can be moved. Aluminum does not have the same precision as steel, but if you cut in wood, plastic or aluminum it will be more than enough.

Some of our customers (Swedish companies)

Specifications

  • Color: Black, White
  • Air-cooled spindle connected to other electronics for automatic start/stop
  • Spindle speed: up to 24,000 rpm
  • LED lights below the X-axis
  • Light weight and suitable for plastic and wooden floors
  • Built-in motors
  • Specially designed aluminum profiles
  • Strong construction that enables undercarriage
  • Rails for clamping workpieces
  • Proximity switch for safety, zeroing and calibration
  • Control: UC100 with Mach3
  • Ball screw: On the Z-axis
  • Rack drive: On X, A and Y axis
  • Spring-loaded motors
  • Linear guides on all axles, HIWIN type
  • Repeatability: +/- 0.01 mm – 0.005mm
  • Backlash: +/- 0.01 mm
  • Voltage: 220V / 10 amp single phase
  • Interchangeable table with clamps
  • Aluminum table with adjustable feet
  • Support by phone and email
  • 2 year warranty
  • CE certified

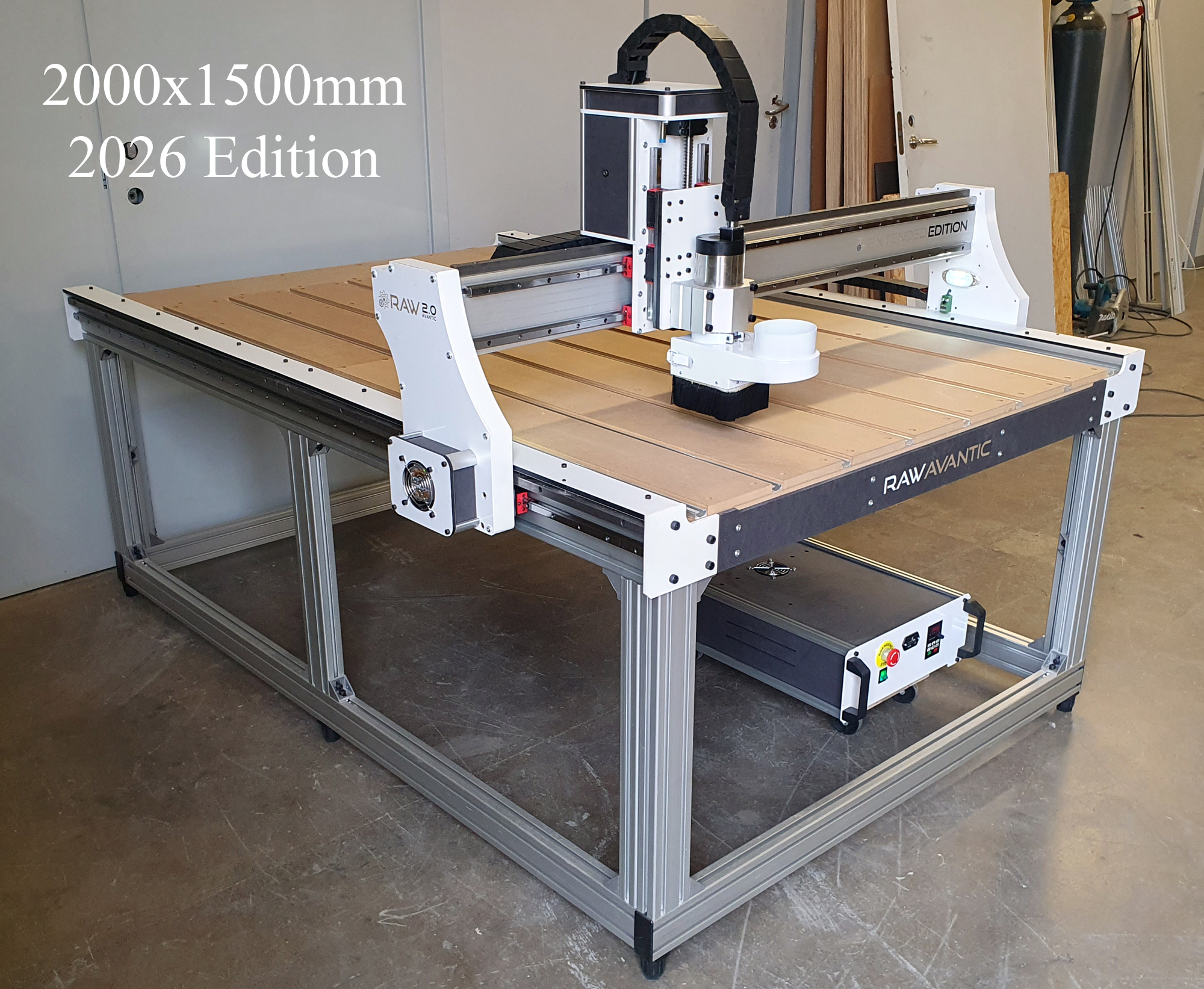

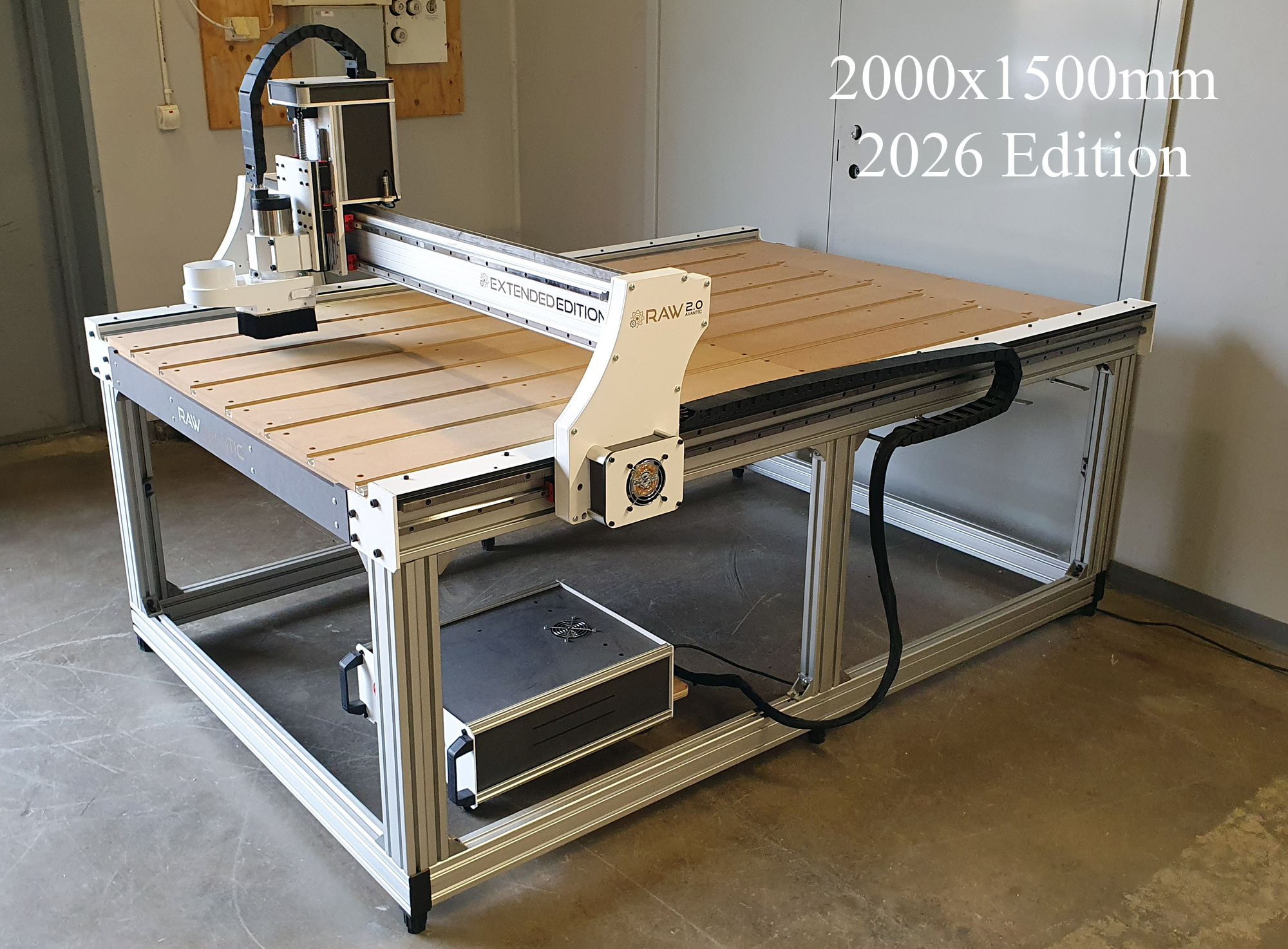

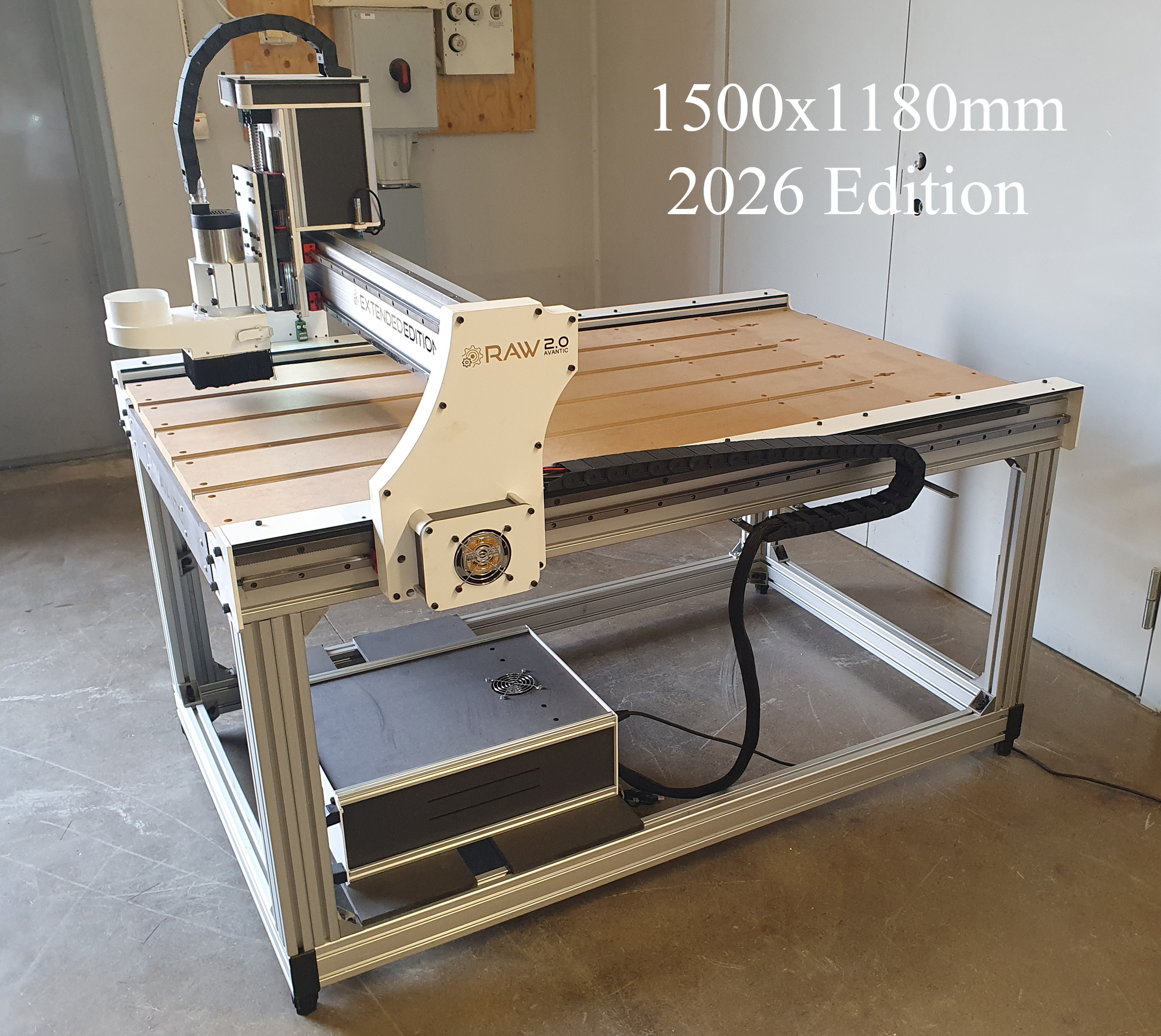

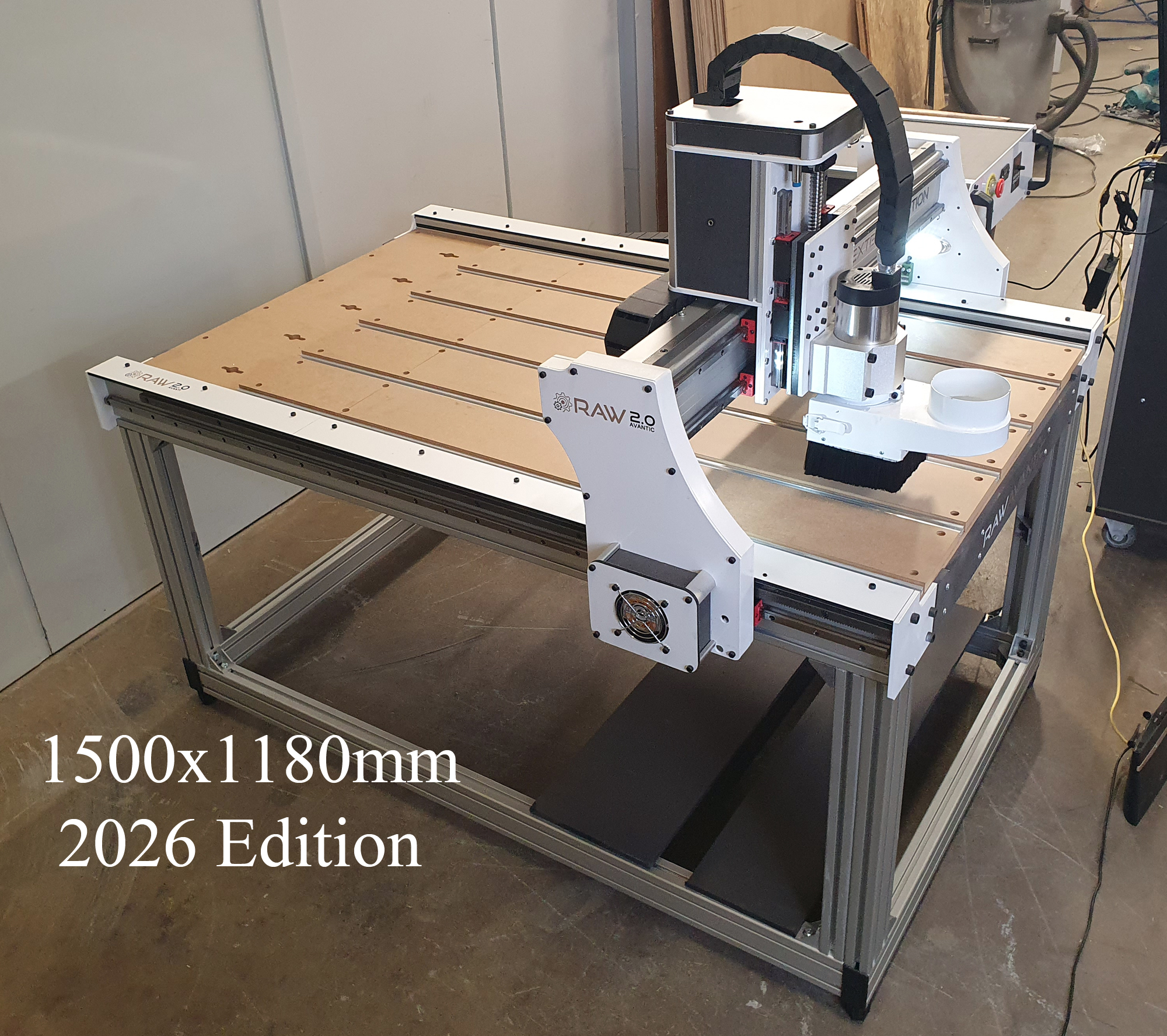

Size of 1500x2000mm machine

  • Machine footprint approx. (W) 1500 x 2000mm
  • Working area: (W) 1220mm x (L) 2000mm (the board can protrude, for example an entire MDF board)
  • Max cut-out: (W) 1100mm x (L) 1750mm
  • Weight: 210 kg
  • Height below Z-axis: 155mm
  • Packaging dimensions: 205Wx65Dx160H

Size of 1180x1350mm machine

  • Machine footprint (W) 1180x (L) 1350mm
  • Working area: (W) 890x (L) 1350mm
  • Max cut-out: (W) 720 x (L) 1060 mm
  • Weight: 190 kg
  • Height below Z-axis: 155mm
  • Packaging dimensions: 80×120 (EU pallet) x150H

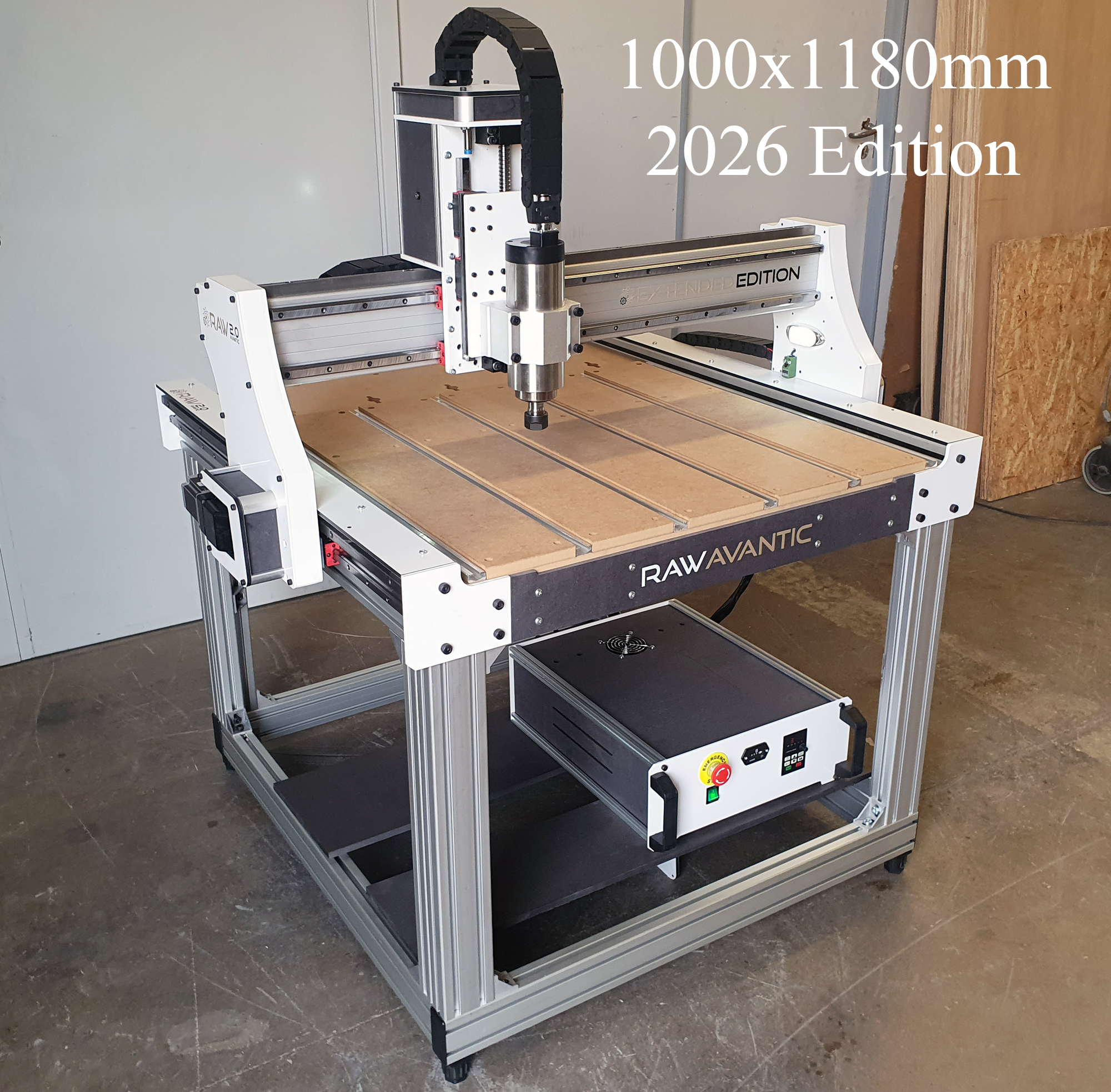

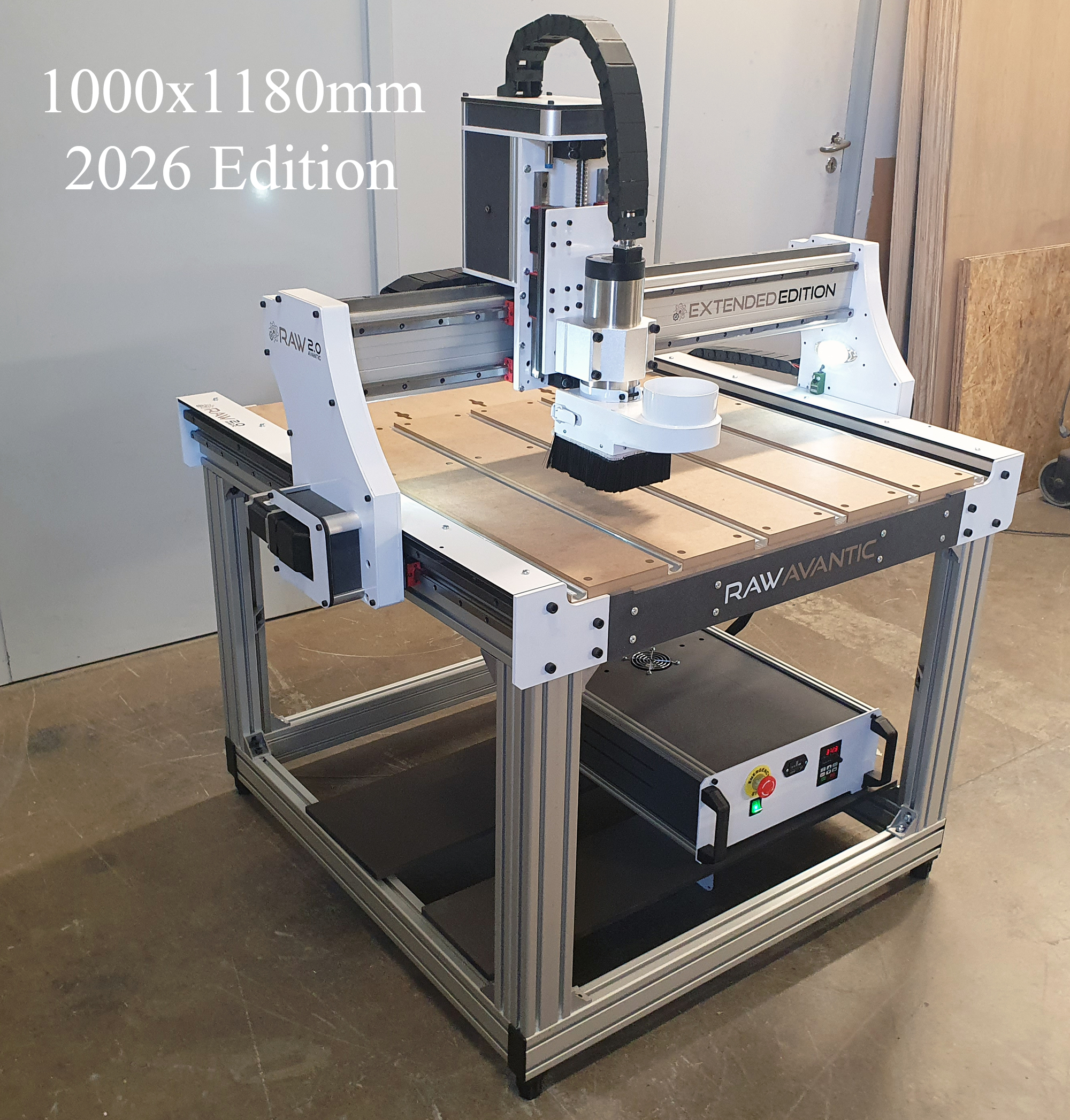

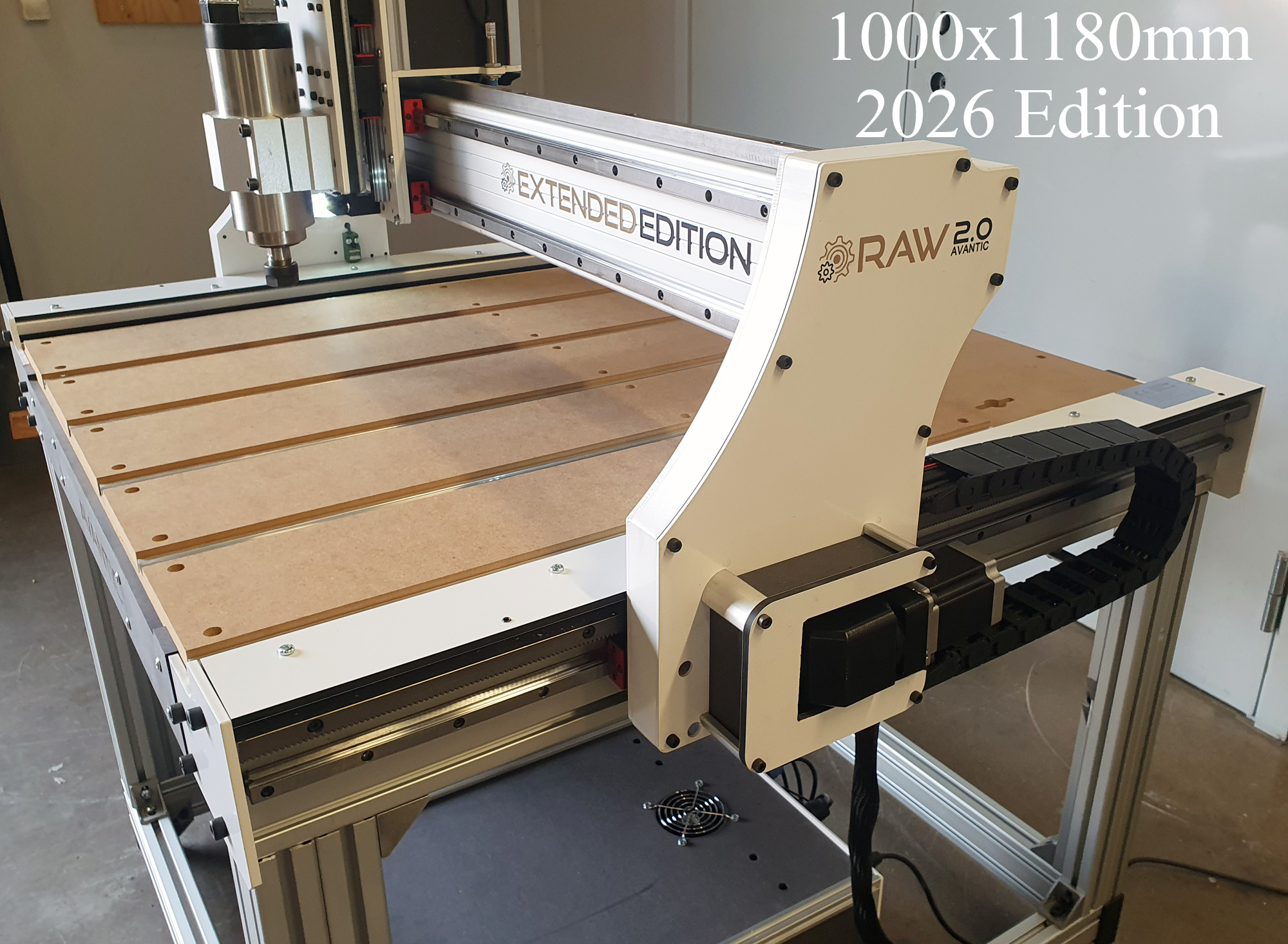

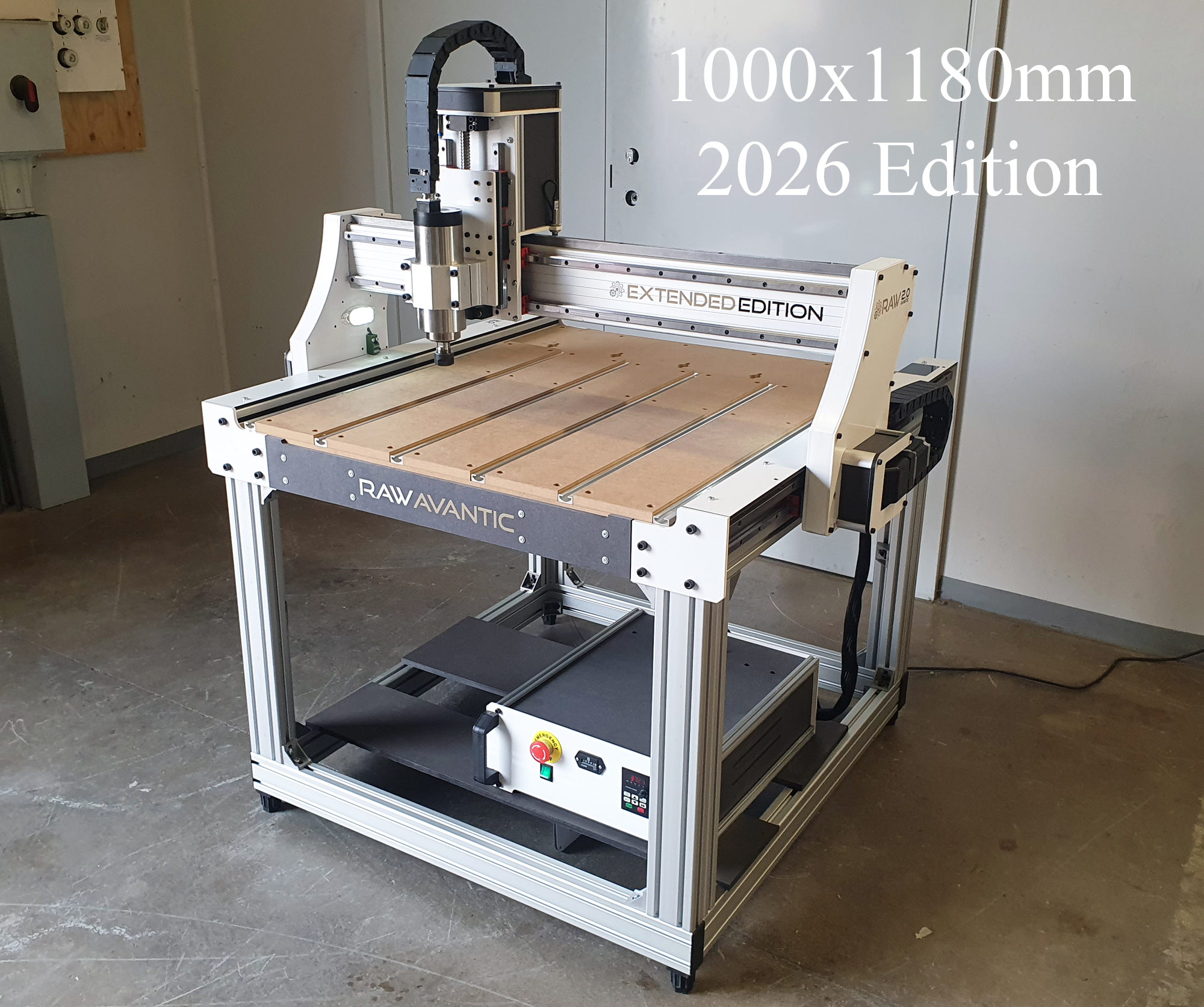

Size of 1180x1000mm machine

  • Machine footprint (W) 1180x (L) 1000mm
  • Working area: (W) 890x (L) 1000mm
  • Max cut-out: (W) 720 x (L) 720mm
  • Weight: 180 kg
  • Height below Z-axis: 155mm
  • Packaging dimensions: 80×120 (EU pallet) x120H

Functions

  • 90-degree calibration at start-up
  • 6 safety, home and calibration switches
  • Calibration functions to calibrate all directions, left, right, up, down and height
  • “Homing” of machine with Proximity switch for extra accuracy
  • Speeds up to 15000mm/min
  • Cut in wood, plastic and soft metal
  • LED lights below the X-axis
  • Light weight and suitable for plastic and wooden floors
  • Support by phone and email

This is included

  • Raw Avantic CE certified CNC machine
  • UC100 module
  • Electronic box that can be unplugged for easy service
  • Calibration plate to calibrate X, Y and Z axis, ie all axes.
  • 80mm Air-cooled spindle with inverter connected to CNC electronics
  • 80mm Dust collector
  • Keys for spindle 22 and 30mm
  • 13 ER20 collets for spindle 1-13mm
  • 4x Clamps to hold down the workpiece
  • 4x end mills to get you started
  • Instruction manual for CNC machine
  • instructional video and access to dedicated website for the machine
  • Support by phone or email

Tools needed to assemble the machine

  • Torx chisel T25
  • Hex chisel (hexagon) 1.5,2,2.5,3,4 (buy a complete set)
  • Phillips screwdriver
  • Pliers/Polygrip
  • Tape (masking tape works well)
  • Screwdriver for self-drilling screws
  • Hammer/Rubber Hammer
  • Smaller flat chisel for electrical terminals

We are working on new videos for the Extended model. The precision is the same with all our models.

3D cutting

Visit Vectric.com for more video instructions on how to set up your files. It may look complicated but it’s easy.

Additional information

Machine size

1000x1180mm, 1350x1180mm, 2000x1500mm

Color

Black, White

Include Mach3 software

No, Yes
