Product Description
During the summer, we work with limited staffing and will therefore temporarily pause our DIY kits.
To maintain better delivery times and provide proper support, we are currently focusing on the Raw Creative Steel Edition. The machine is delivered in pre-assembled main sections and will be our main product during the summer period.
Instead buying screws and hardware one by one, we have collected everything in one package. Usually you need to buy a lot of something to get a good price and we have the opportunity to do that.
This package is made for both the Belt and Rack versions of the Raw Creative 2.5.

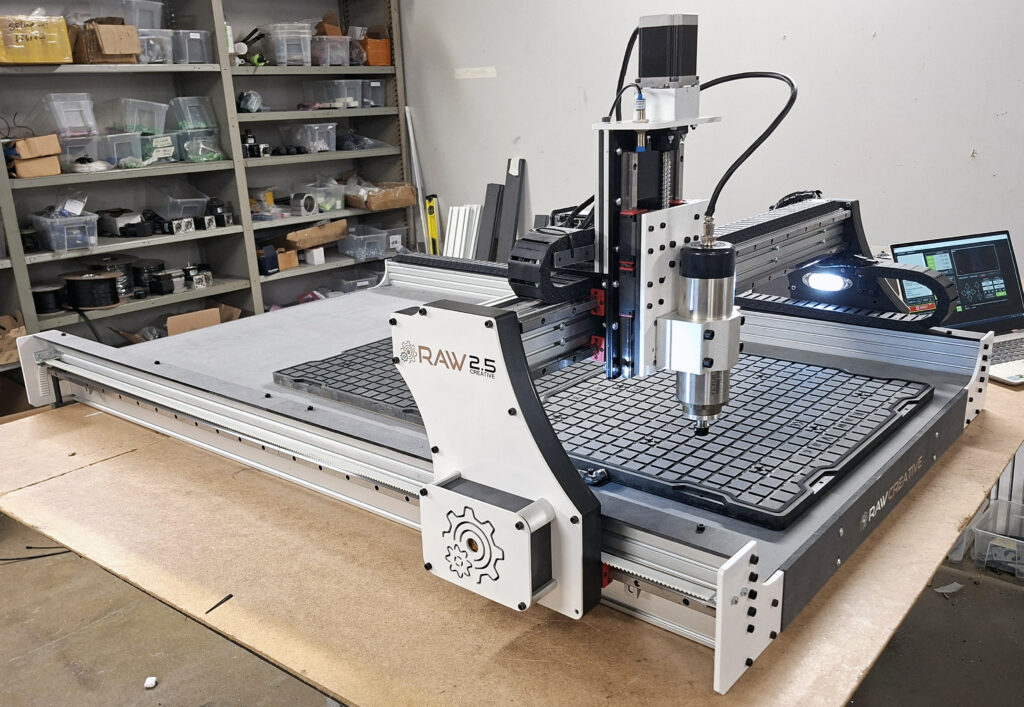

Raw Creative 2.5 hardware kit
This hardware kit contains the main screws, nuts, brackets, spacers and selected hardware needed to build a Raw Creative 2.5 machine up to 2000 x 1500 mm in size.
For a detailed overview of what is used for the Belt and Rack versions, please check the BOM list at creative.rawcnc.com.
Included hardware
Screws, nuts and washers
- M8 screws
- M6 screws
- M5 screws
- M4 screws
- M3 screws
- Countersunk screws
- Nuts
- Washers / shims
- T-nuts
- Drill screws
Brackets, spacers and mechanical parts
- Aluminium angle brackets
- Steel angle brackets
- Spacers for Z-axis and side plates, 22 in total
- KFL08 bearing blocks
- 50 mm tension springs, 1 mm wire thickness
- Bellows coupling for motor
- Lock bearings for motors
- Ballscrew, FK10 and nut housing DSG12H for Z-axis
- Hole plates
Electrical and assembly parts
- Probe socket
- Screw terminal 8P
- Zip ties
Special Raw Creative parts
- Aluminium extrusion for Z-axis
- Rail alignment jig set
- Raw Creative 2.5 decal set
Important note
This kit is intended to make sourcing easier, but it does not replace the BOM list completely. Always compare the kit contents with the BOM. You still need to purchase drive systems, linear guides, etc.
DIY parts package notice
This product is supplied as individual components for a DIY CNC build. It is not a finished machine, not a ready-to-use CNC system and not supplied as a safety-certified machine. If the completed machine is used in a workshop, business or workplace environment, the builder/operator is responsible for making sure the final machine meets all applicable safety requirements.
