Product Description
We are out of black consumable tables and you can only choose tables in regular MDF instead of black
Made to order with a delivery time of 14-21 days.

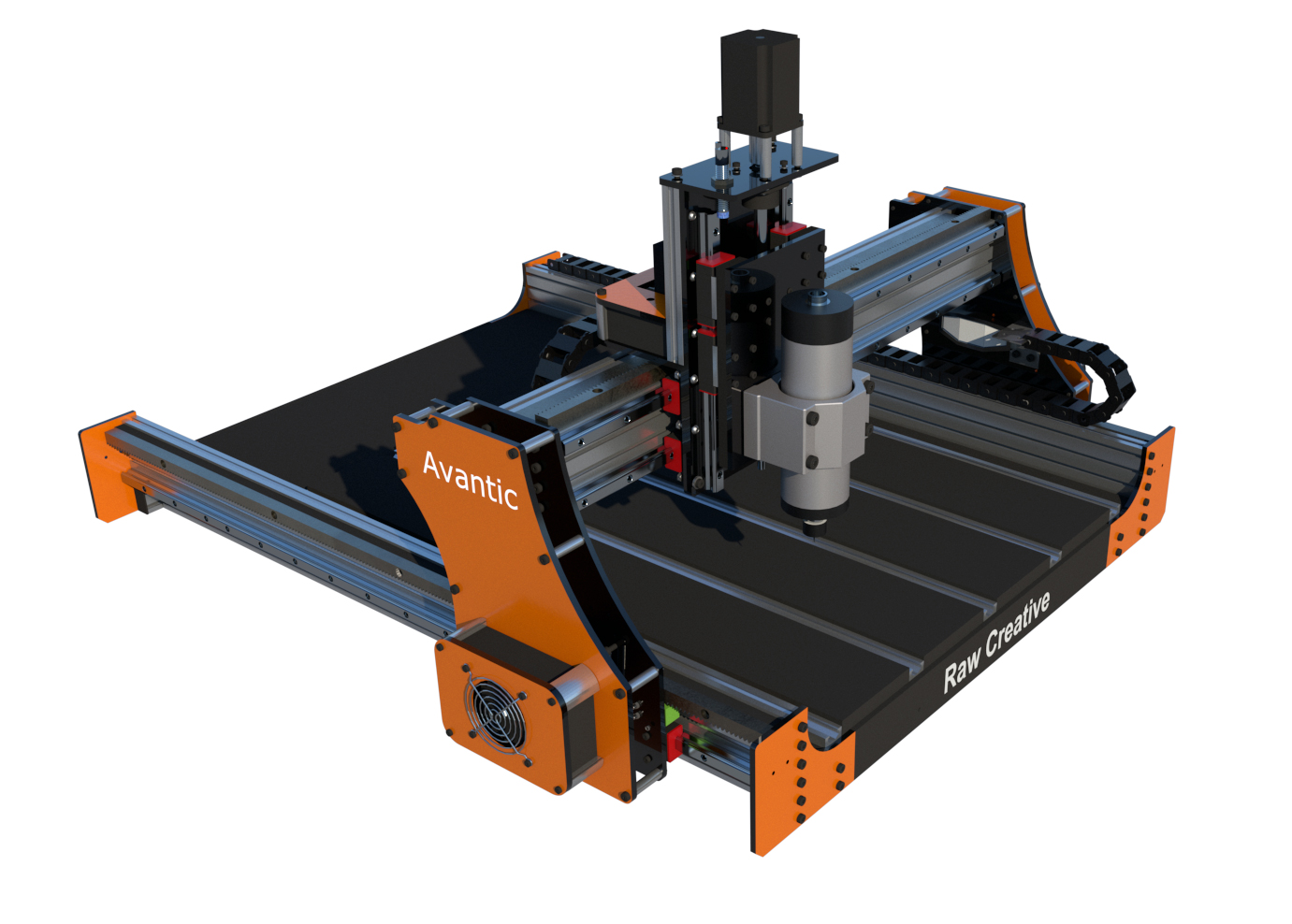

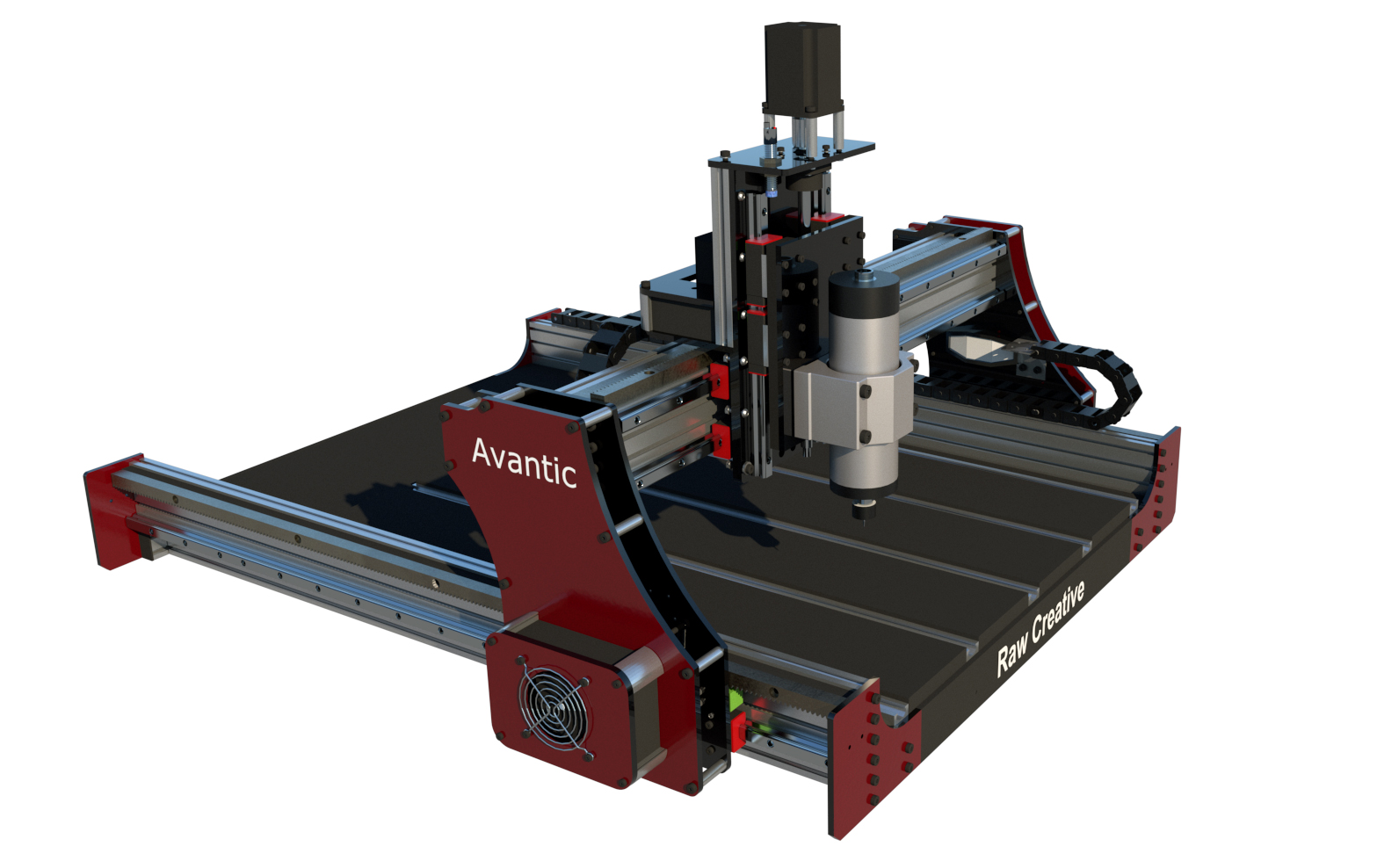

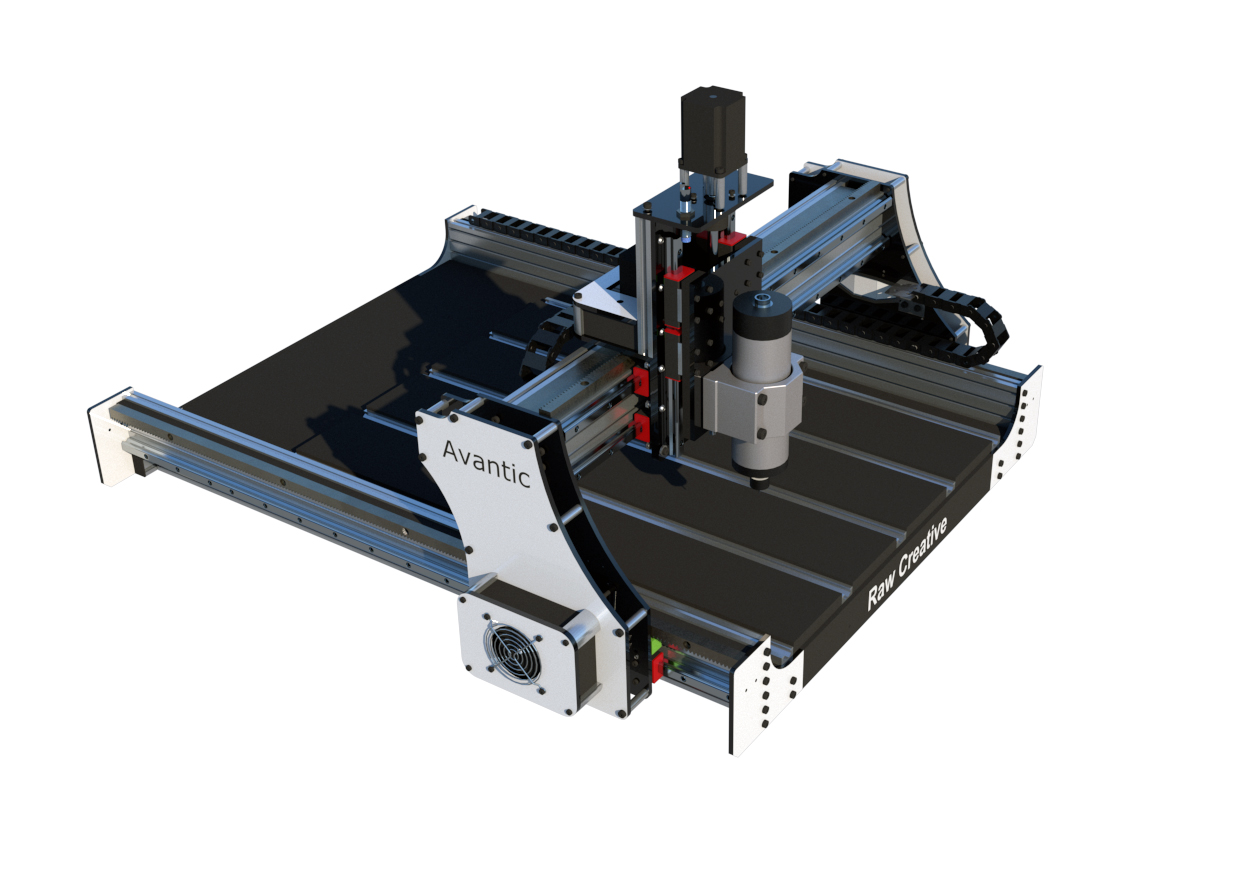

A CNC router with a steel frame and rack and pinion drive.
Raw Avantic Creative Edition is a strong CNC router for users who want a stable, fully assembled machine in the hobby and semi-professional class.
The new version is built with a robust steel frame instead of aluminium, making the machine significantly stiffer and more stable. It can now be used as a desktop machine on a strong, flat table, or placed on an optional steel stand.
Creative Edition is based on the same principles as our larger Raw Avantic machines, with thick steel plates, linear rail guides and industrial electronics. The result is a strong and precise CNC machine with good speed and excellent cutting performance.
Choose the rack and pinion version if you want a fast, strong all-round machine for wood, plastics, sheet materials, signs, interior projects, prototypes and light production.
The machine is delivered fully assembled i large parts ready to install, set up and start using. Please note that the machine is supplied as a desktop machine. The steel stand/base is available separately.

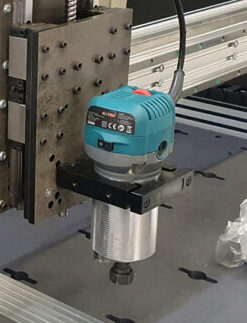

Add an ER11 trim router with automatic start/stop
Skärhuvud ingår inte som standard, så du kan själv välja mellan kantfräs eller spindel.
För att komma igång enkelt kan du köpa till vår kantfräs med ER11-hylsa och automatisk start/stopp från maskinens styrning. Den passar bra för trä, plast, skyltmaterial och lättare gravyr.
Du kan även använda en vanlig 1,5 kW eller 2,2 kW CNC-spindel med VFD. Kompletta paket finns ofta från cirka 3 500 kr, och vi kan tipsa om lämpliga alternativ. Inkoppling av spindel/VFD ansvarar kunden själv för och ska göras av elektriker eller behörig person.
15mm Linear Rails
Raw Creative runs on real linear rails. Linear rails give the machine the stability and rigidity that a true CNC machine requires. Other machines in the same price range use plastic wheels that are more suited to 3D printers and toys. Linear rails are expensive, but we have pushed the price down as far as possible because we believe they are the only sensible solution for a good machine.
There are 12 linear bearing blocks on the rails, each of which can be lubricated individually.
Waste board
When you order your Raw Creative machine, you can choose to add a complete spoilboard tailored to the machine’s design. The spoilboard consists of two layers: a sacrificial top surface and a base board that keeps the machine locked square at 90 degrees. The top layer (the wear surface) can be easily replaced as it wears.
If you want to build your own table, you can do that—see the video here:
https://youtu.be/ztYKh6xacE8?si=Cxs_SwPBbNNJnqMY
The image above shows a spoilboard in black, moisture-resistant MDF.
Stepper Motors
We have chosen to equip the machine with powerful 3-amp NEMA 23 stepper motors instead of the weaker NEMA 17 motors found in many other machines in this price range. The frame is made of aluminium and the plates of steel and HPL, yet the machine still maintains a relatively low weight thanks to its optimised design and structure.
The motors are strong enough that a fully grown adult could stand on the gantry while the machine is cutting.

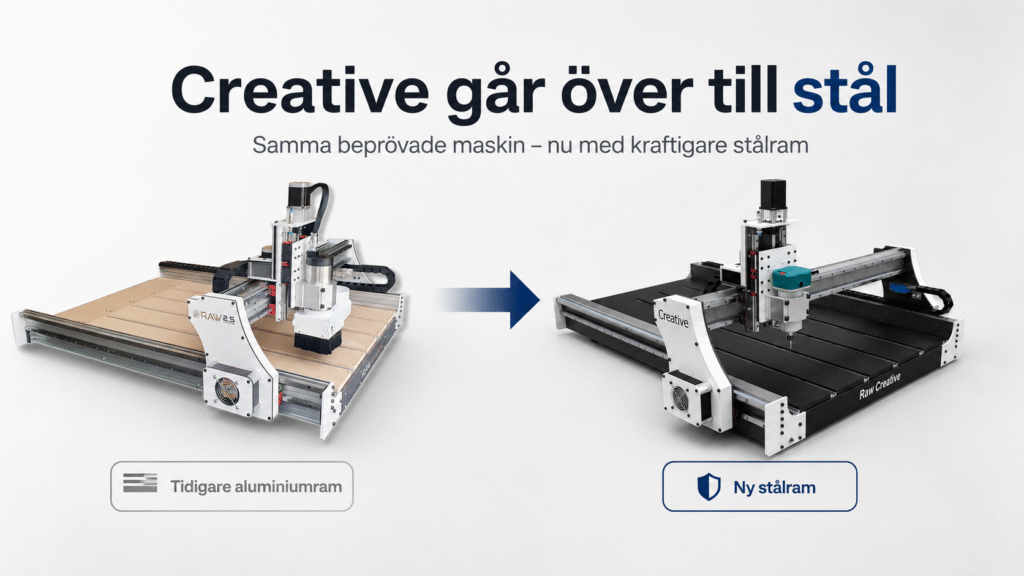

Creative is now moving to a steel frame
Creative was previously built with a aluminium frame, but we are now converting our machines to steel frames. Creative will be the first model to make this transition.
The machine is still based on the same proven design, with the same motion system, steel plates, linear rails and overall machine concept as before. The main difference is the frame.

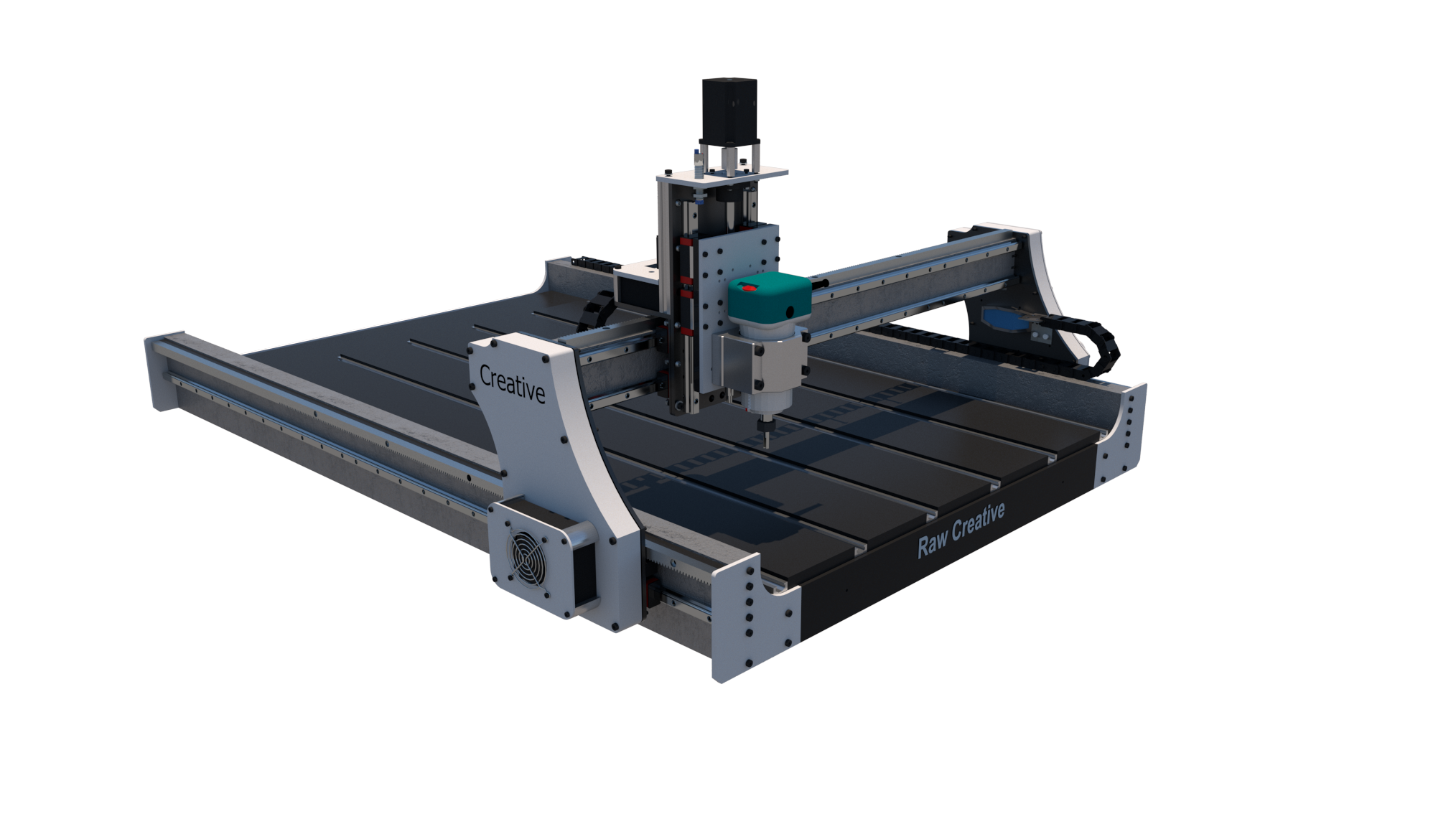

The new frame is made from steel instead of aluminium and uses profiles that are twice as wide. This creates a much stronger and more stable machine base, with improved stiffness and a more robust feel throughout the entire construction.

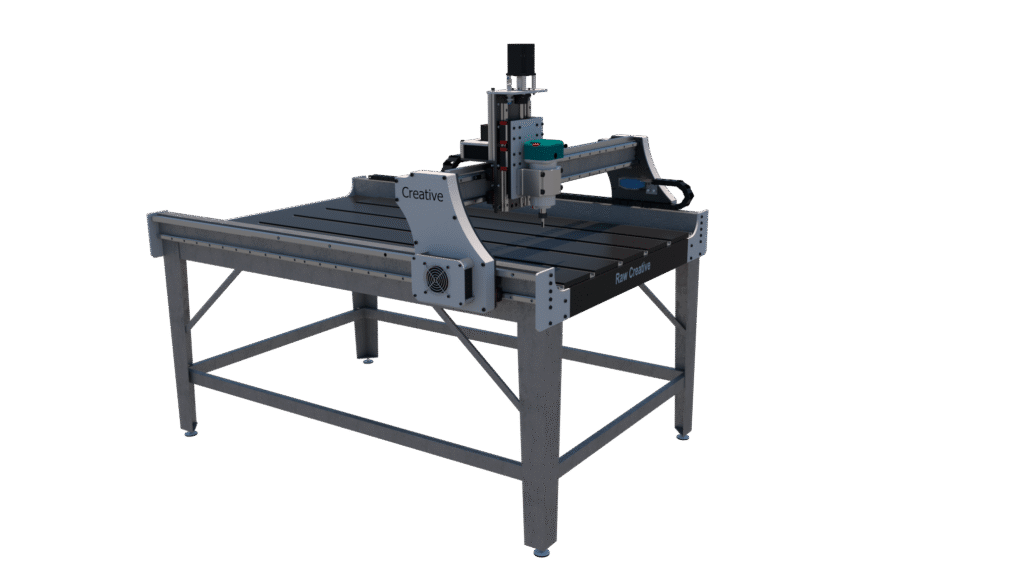

Thanks to the stronger steel frame, the machine can now also be ordered with legs and used as a freestanding machine. If you prefer a desktop setup, it can still be placed on a strong, flat table, with space for a computer, screen and keyboard in front of the machine.
All images of our previous Creative machine still show the same machine model and basic design. The only major change is that the aluminium frame has now been replaced with a strong steel frame.
Spindle / Router
We’ve adapted the machine for different mounts so you can choose the cutting head you prefer. We include a 65 mm mount that fits a 1.5 kW spindle or the trim routers mentioned below.
You can use a standard trim router from, for example, Makita, Bosch or DeWalt. A spindle with a VFD needs to be wired/ connected. You can choose to have the machine delivered with a 1.5 kW spindle installed, but that option is more expensive.
You can find inexpensive trim routers on Amazon as an example (note: choose the standard round 65 mm body).
The Z-axis features both a ball screw and linear guides for maximum precision.
Calibration & Limit Switches
Raw Creative is equipped with inductive switches that are more reliable and contain no moving parts. We’ve ensured the machine has switches in every direction for emergency stop, calibration, and zeroing the coordinates.
This machine has a unique feature where you can “force” the machine to square itself to 90° at startup so it cuts perfect parts.
Thanks to the inductive switches for each motor, the machine can position all motors at the specified distance.
Precision
Precision is a balance between the user and the machine. It depends on how good your drawings are, the spindle, RPM, and how fast you cut. At a normal cutting speed of about 2,000–4,000 mm/min, the machine has the same accuracy as expensive industrial machines.
Repeatability: ±0.1–0.05 mm Backlash: ±0.1–0.05 mm
The machine is primarily built to cut wood, plastics and similar materials. You can cut aluminium, but it requires the right settings regardless of which machine you use
Software
The Raw Creative is built for the Mach3 control software but is fully compatible with any control software that drives 3 A NEMA 23 motors, such as Mach3/4, UCCNC, Arduino/GRBL, LinuxCNC, or others. You are free to switch to any system you like, but we recommend Mach3 and only provide support for it. If you switch the control software, you will also need to change the controller board to match the respective system, such as LinuxCNC, GRBL, or similar.
Mach3
Mach3 is the most used control software in the world, which means that there is more support and features for this software than any other. Mach3 looks outdated but we have updated it with our own UI to make it look more modern. The update is completely free for customers and instructions can be found here: Update Mach3, see image to the right.
UCCNC, Linux or other control software
Avantic is compatible with most control software but we only have settings for Mach3. If you have decent knowledge of control programs, it is easy to change control card and set the machine to any option.
To set up the machine
After your machine is delivered, it must be set up with control software to be able to run. You can also choose to include a computer when purchasing. The computer is then completely installed, but you need to purchase a monitor, mouse and keyboard.
We have a guide for this at the top of the page “Configure your machine” If you encounter obstacles or feel that you do not have time, we can do it for you. Send the computer to us while you wait for your machine. The computer should be version WINDOWS 7-10. The computer can be used and laptop or desktop. The computer does not need to have high performance as it will only control the machine. We recommend that you have a separate computer to control the machine.
💰 Price – Why You Get More for Your Money With Us
Our strength? We have been developing and manufacturing our own CNC machines for over 15 years and have developed Raw Creative ourselves – without any intermediaries. This means you pay for real performance, not for marketing or distribution.
We’re able to offer a competitive price because we:
✅ Laser-cut all metal components in-house
✅ Apply durable powder coating in our own facility
✅ Cut aluminum and steel profiles with digitally guided precision saws
✅ Purchase materials in large volumes to reduce costs
✅ Repackage and optimize part quantities so you avoid overbuying, incorrect orders, or high shipping fees
The result? A fully assembled, tested, and complete machine that delivers better value – and far less hassle – than building one from scratch.
What Can You Cut with a Raw Creative?
Softwood, hardwood, chipboard, MDF, plastic, aluminum, signage materials, 3D carvings, and engraving — all are possible with Raw Creative.
Please note that aluminum and other soft metals are generally more difficult to cut, no matter which machine you use. If your primary goal is to cut metal, a laser cutter or waterjet machine may be a better choice.
Klarna
For orders over 2000 EUR, invoice or instalment payments may be activated at the time of purchase, even if delivery takes place later.
This is because the machine is built specifically for you and parts may need to be purchased before production can begin.
By choosing Klarna, you accept that the first invoice may arrive before delivery.
Specifications
- Colour: Black and white
- Material: Steel plates and steel frame
- Spoilboard: Replaceable spoilboard with rails available as an option
- Spindle/router: Designed for a 1.5 kW industrial spindle or trim router
- Sensors: 5 proximity switches for safety, homing and calibration
- Control system: PC with Mach3
- Ballscrew: Z-axis
- Rack and pinion drive: X, A and Y axes
- Motors: Nema 23 stepper motors
- Linear guides: Linear rail guides on all axes, HIWIN type
- Repeatability: Approx. +/- 0.1–0.05 mm
- Backlash: Approx. +/- 0.1–0.05 mm
- Power supply: 230 V / 10 A single phase
- Work table: Replaceable table with clamps
- CE marked
Optional Cutting Head Specifications
- Type: CNC trim router
- Power: 800 W ±10%
- Voltage/frequency: 110 V / 60 Hz or 220 V / 50 Hz
- Speed: 10,000–30,000 rpm
- Collet type: ER11, suitable for cutters from 1–7 mm
- ER11 collets are not included
- Start/stop: External control via cable
- Recommended working temperature: 0–40°C
- Package weight: Approx. 3 kg
- Package size: Approx. 15 x 12 x 25 cm
Dimensions for 1000×764mm Machine:
- Machine footprint: approx. (L) 1005 mm × (W) 925 mm (including motor covers)
- Work area: (L) 1000 mm × (W) 650 mm (material can extend beyond the bed)
- Maximum cutting area: (L) 720 mm × (W) 500 mm
- Clearance under Z-axis: 145 mm
Dimensions for 1000×1180mm Machine
- Machine footprint: approx. (L) 1005 mm × (W) 1170 mm (including motor covers)
- Work area: (L) 1000 mm × (W) 890 mm (material can extend beyond the bed)
- Maximum cutting area: (L) 720 mm × (W) 760 mm
- Clearance under Z-axis: 145 mm
Dimensions for 1500×1180mm Machine
- Machine footprint: approx. (L) 1505 mm × (W) 1170 mm (including motor covers)
- Work area: (L) 1500 mm × (W) 890 mm (material can extend beyond the bed)
- Maximum cutting area: (L) 1230 mm × (W) 760 mm
- Clearance under Z-axis: 145 mm
Features (Mach3 only — all features can be configured in other software, but we only provide support for Mach3)
- 90-degree auto-calibration at startup
- 5 safety, homing, and calibration switches
- Probe functions
- Machine homing using proximity switches for extra accuracy
- Travel speed: Up to 30,000 mm/min
- Cuts wood, plastic, and soft metals
- LED lighting under the X-axis
- Lightweight design, suitable for plastic and wooden floors
- Compatible with all Nema 23 motor controllers
- Support via email or our website
This is included (and options)
- Raw Avantic CE-certified CNC machine
- Mach3 control software (optional)
- Electronics box with quick-disconnect plugs for easy service
- 65 mm spindle mount, suitable for most trim routers and 1.5 kW spindles (optional)
- 4x clamps for holding down the workpiece, included when choosing the spoilboard option
- Support by phone or email
Waste board
When ordering your Raw Creative machine, you have the option to add a Waste board, custom-designed to fit the machine’s construction.
The table consists of two layers – a wear surface and a base layer that locks the machine frame at a perfect 90-degree angle.
The top layer (the wear surface) can easily be replaced when it becomes worn.
Prefer to build your own table? No problem – watch the guide here:
Build your own table – video
For Linux, the machine is normally run with LinuxCNC. This requires an older computer with a real parallel/printer port, or a computer with a compatible PCI/PCIe parallel port card. This is needed because LinuxCNC sends real-time control signals directly to the machine electronics.
The same type of setup can also be used with Windows and Mach3, where an older computer with a parallel port works well. For Windows, there is also a more flexible option: UC100. This is an external adapter that converts the control signals to USB, allowing the machine to be controlled from most standard Windows computers. We also have a video guide showing how to prepare an older Windows computer to run the machine through a parallel/printer port. Please note that ready-made settings and support are currently only available for Mach3.
All the videos below are on our previous model with HPL and aluminum instead of steel. The machine is now made of heavy duty steel.
Repeatability and Backlash
Repeatability and backlash are often used by manufacturers to indicate machine accuracy — but these values can be misleading, especially when it comes to aluminum-framed machines. All aluminum frames have some degree of flex when under load.
Our machines have virtually zero backlash and excellent precision when moving without resistance (“in the air”), but as soon as you begin cutting material, there is inevitably some structural play. This applies to all aluminum-based machines in our price range.
We use as much steel as possible to counteract this and have designed an extremely rigid frame, but to stay realistic, we can only guarantee around ±0.1 mm for both repeatability and backlash.
Don’t rely solely on these numbers — real-world accuracy depends on the type of machine, material resistance, tooling, feed rate, and your settings. See the video below for a demonstration.
