Product Description

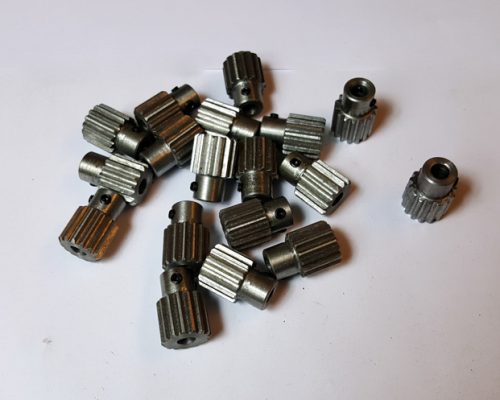

Pinion gear suitable for MOD 1.0 gear racks. The gear is made for CNC rack and pinion drive systems and fits standard NEMA 23 stepper motor shafts with a 6.35 or 8mm shaft diameter.

The gear has 15 teeth and is secured to the motor shaft using two set screws. This makes it suitable for compact CNC drive systems where a direct-mounted pinion is used on the motor or gearbox shaft.

Specifications:

Module: MOD 1.0
Teeth: 15
Bore: 6.35 mm or 8mm, standard for many NEMA 23 motors
Set screw holes: 2 x M4
Colour: Black

Typical use:

CNC rack and pinion drive
Stepper motor drive systems
Raw Creative 2.5 rack version
DIY CNC machines
